Stock:
Distributor: 160
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 5.18000 | ₹ 5,18,000.00 |
| 10000 | ₹ 6.19000 | ₹ 61,900.00 |
| 1000 | ₹ 6.93000 | ₹ 6,930.00 |
| 500 | ₹ 7.52000 | ₹ 3,760.00 |
| 100 | ₹ 8.36000 | ₹ 836.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Bulk | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 15Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 2V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 6ns, 2ns | |
| 3dB Bandwidth | 330MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 4.1pF | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

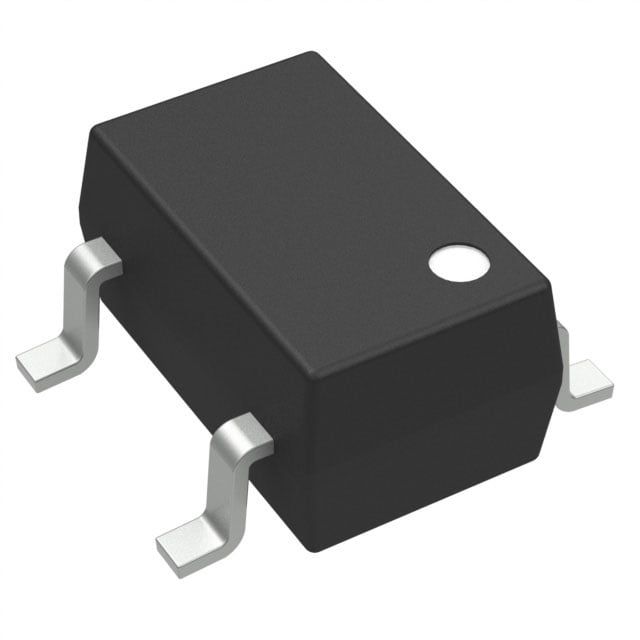

| Component Housing Style | SOT-23-5 Thin, TSOT-23-5 | |
| Vendor Package Type | 5-TSOP |
Description
Delivers a -3dB bandwidth of 330MHz to maintain reliable signal quality. Offers off-state channel capacitance of 4.1pF. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 15Ohm for effective conduction. Peak resistance in the on-state 15Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Bulk for safeguarding or transporting components. Style of the enclosure/case SOT-23-5 Thin, TSOT-23-5 that offers mechanical and thermal protection. Type of package 5-TSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 5-TSOP for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 6ns, 2ns for timing accuracy. Single voltage supply for electronic devices at V+ 2V ~ 5.5V.
