Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 750mOhm | |
| Inter-Channel Resistance Match | 20mOhm | |
| Single Positive Supply | 1.4V ~ 4.3V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 25ns, 10ns | |
| 3dB Bandwidth | 60MHz | |
| Charge Transfer Effect | 15pC | |
| Off-State Channel Capacitance | 35pF | |
| Max Off-State Leakage | 10nA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

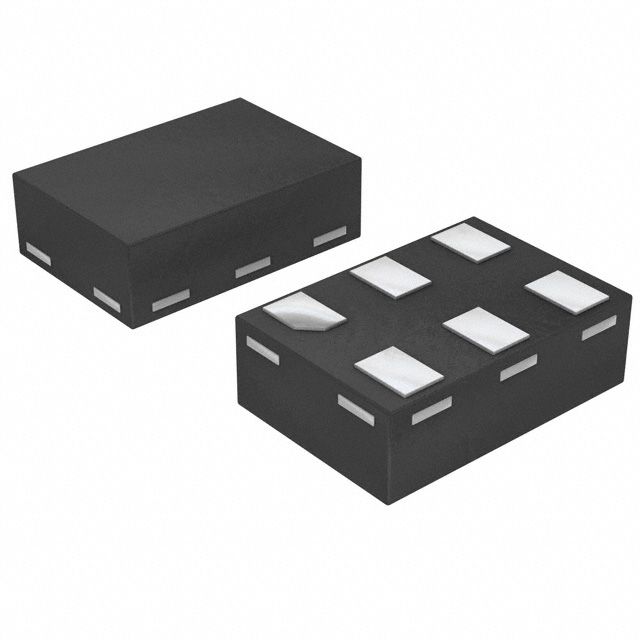

| Component Housing Style | 6-XFDFN | |
| Vendor Package Type | 6-XSON, SOT886 (1.45x1) |
Description
Delivers a -3dB bandwidth of 60MHz to maintain reliable signal quality. Offers off-state channel capacitance of 35pF. Ensures ΔRon alignment accuracy defined at 20mOhm. Provides charge injection capability rated at 15pC. Highlights the maximum off-state leakage (IS(off)) rated at 10nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 750mOhm for effective conduction. Peak resistance in the on-state 750mOhm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-XFDFN that offers mechanical and thermal protection. Type of package 6-XSON, SOT886 (1.45x1) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 6-XSON, SOT886 (1.45x1) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 25ns, 10ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.4V ~ 4.3V.
