Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74LVC | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NC | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 10Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 4.2ns, 5ns | |
| 3dB Bandwidth | 500MHz | |
| Charge Transfer Effect | 7.5pC | |
| Off-State Channel Capacitance | 5pF | |
| Max Off-State Leakage | 5µA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

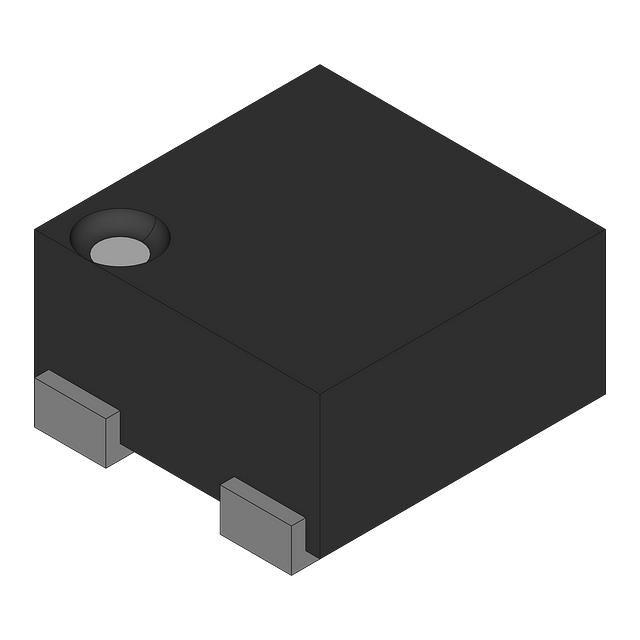

| Component Housing Style | 4-XFDFN Exposed Pad | |
| Vendor Package Type | 5-X2SON (0.80x0.80) |
Description
Delivers a -3dB bandwidth of 500MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF. Provides charge injection capability rated at 7.5pC. Highlights the maximum off-state leakage (IS(off)) rated at 5µA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 10Ohm for effective conduction. Peak resistance in the on-state 10Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 4-XFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 5-X2SON (0.80x0.80) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74LVC. Supplier package type 5-X2SON (0.80x0.80) for component selection. Circuit switch SPST - NC for functional operations. Maximum on/off switching duration Ton/Toff 4.2ns, 5ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
