Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 16:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 120Ohm | |
| Inter-Channel Resistance Match | 6Ohm | |
| Single Positive Supply | 4.5V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 65ns, 60ns | |
| 3dB Bandwidth | 100MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 3.5pF | |
| Max Off-State Leakage | 800nA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

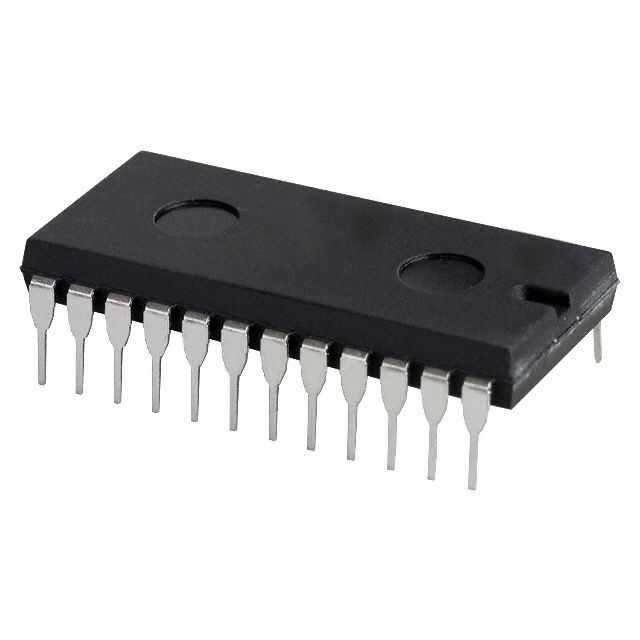

| Component Housing Style | 24-DIP (0.600", 15.24mm) | |
| Vendor Package Type | 24-DIP |
Description
Delivers a -3dB bandwidth of 100MHz to maintain reliable signal quality. Offers off-state channel capacitance of 3.5pF. Ensures ΔRon alignment accuracy defined at 6Ohm. Highlights the maximum off-state leakage (IS(off)) rated at 800nA. Mounting configuration Through Hole for structural stability. Mux/demux pathway 16:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 120Ohm for effective conduction. Peak resistance in the on-state 120Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 24-DIP (0.600", 15.24mm) that offers mechanical and thermal protection. Type of package 24-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 24-DIP for component selection. Maximum on/off switching duration Ton/Toff 65ns, 60ns for timing accuracy. Single voltage supply for electronic devices at V+ 4.5V ~ 5.5V.
