Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 200000 | ₹ 5.25000 | ₹ 10,50,000.00 |
| 100000 | ₹ 5.28000 | ₹ 5,28,000.00 |
| 60000 | ₹ 5.30000 | ₹ 3,18,000.00 |
| 40000 | ₹ 5.33000 | ₹ 2,13,200.00 |
| 20000 | ₹ 5.44000 | ₹ 1,08,800.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 20000 | ₹ 6.65000 | ₹ 1,33,000.00 |
| 10000 | ₹ 6.82000 | ₹ 68,200.00 |
| 100 | ₹ 9.36000 | ₹ 936.00 |
| 50 | ₹ 10.11000 | ₹ 505.50 |
| 10 | ₹ 12.56000 | ₹ 125.60 |
| 1 | ₹ 18.75000 | ₹ 18.75 |
Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 35.88000 | ₹ 179.40 |
| 10 | ₹ 18.80000 | ₹ 188.00 |
| 100 | ₹ 11.54000 | ₹ 1,154.00 |
| 500 | ₹ 9.65000 | ₹ 4,825.00 |
| 1000 | ₹ 7.09000 | ₹ 7,090.00 |
| 5000 | ₹ 6.41000 | ₹ 32,050.00 |
| 10000 | ₹ 5.73000 | ₹ 57,300.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74LVC | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 15Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 5.5ns, 6.5ns | |
| 3dB Bandwidth | 500MHz | |
| Charge Transfer Effect | 7.5pC | |
| Off-State Channel Capacitance | 6.5pF | |
| Max Off-State Leakage | 500nA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount, Wettable Flank | |

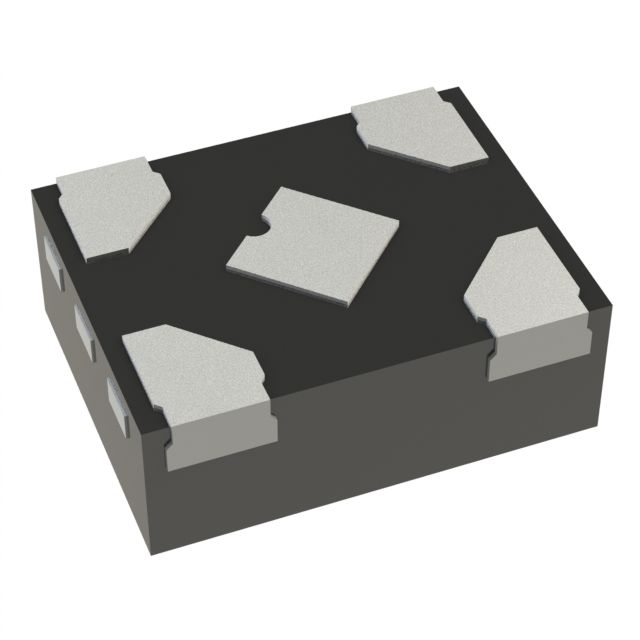

| Component Housing Style | 4-XDFN Exposed Pad | |
| Vendor Package Type | 5-XSON (1.1x0.85) |
Description
Delivers a -3dB bandwidth of 500MHz to maintain reliable signal quality. Offers off-state channel capacitance of 6.5pF. Provides charge injection capability rated at 7.5pC. Highlights the maximum off-state leakage (IS(off)) rated at 500nA. Mounting configuration Surface Mount, Wettable Flank for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 15Ohm for effective conduction. Peak resistance in the on-state 15Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 4-XDFN Exposed Pad that offers mechanical and thermal protection. Type of package 5-XSON (1.1x0.85) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74LVC. Supplier package type 5-XSON (1.1x0.85) for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 5.5ns, 6.5ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
