Description

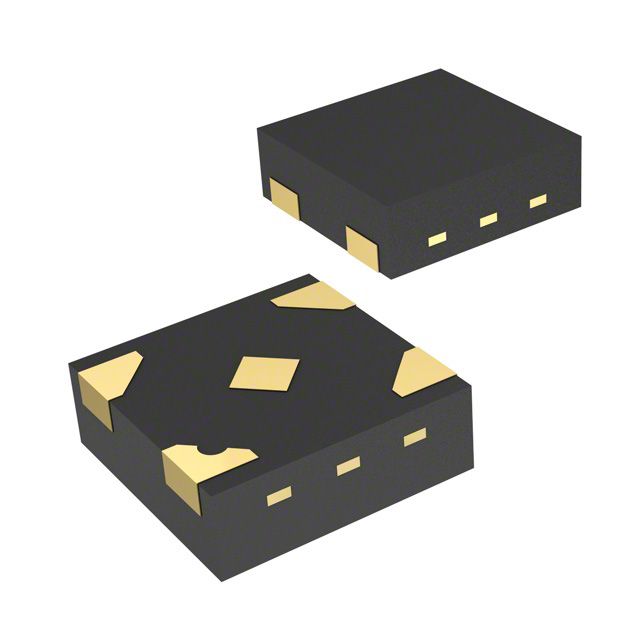

Delivers a -3dB bandwidth of 500MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF. Provides charge injection capability rated at 7.5pC. Highlights the maximum off-state leakage (IS(off)) rated at 5µA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 10Ohm for effective conduction. Peak resistance in the on-state 10Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 4-XFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 5-X2SON (0.80x0.80) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74LVC. Supplier package type 5-X2SON (0.80x0.80) for component selection. Circuit switch SPST - NC for functional operations. Maximum on/off switching duration Ton/Toff 4.2ns, 5ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
