Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 48000 | ₹ 42.29000 | ₹ 20,29,920.00 |
| 24000 | ₹ 42.53000 | ₹ 10,20,720.00 |
| 12000 | ₹ 43.16000 | ₹ 5,17,920.00 |
| 6000 | ₹ 43.80000 | ₹ 2,62,800.00 |
| 3000 | ₹ 44.91000 | ₹ 1,34,730.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 59.62000 | ₹ 3,57,720.00 |
| 3000 | ₹ 61.01000 | ₹ 1,83,030.00 |
| 100 | ₹ 73.60000 | ₹ 7,360.00 |
| 50 | ₹ 78.00000 | ₹ 3,900.00 |
| 10 | ₹ 92.17000 | ₹ 921.70 |
| 1 | ₹ 127.29000 | ₹ 127.29 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 171.77000 | ₹ 171.77 |
| 10 | ₹ 109.47000 | ₹ 1,094.70 |
| 25 | ₹ 97.90000 | ₹ 2,447.50 |
| 100 | ₹ 80.37000 | ₹ 8,037.00 |
| 250 | ₹ 70.04000 | ₹ 17,510.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74HC | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 16:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 120Ohm | |
| Inter-Channel Resistance Match | 6Ohm | |
| Single Positive Supply | 2V ~ 10V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 45ns, 45ns | |
| 3dB Bandwidth | 100MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 3.5pF | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

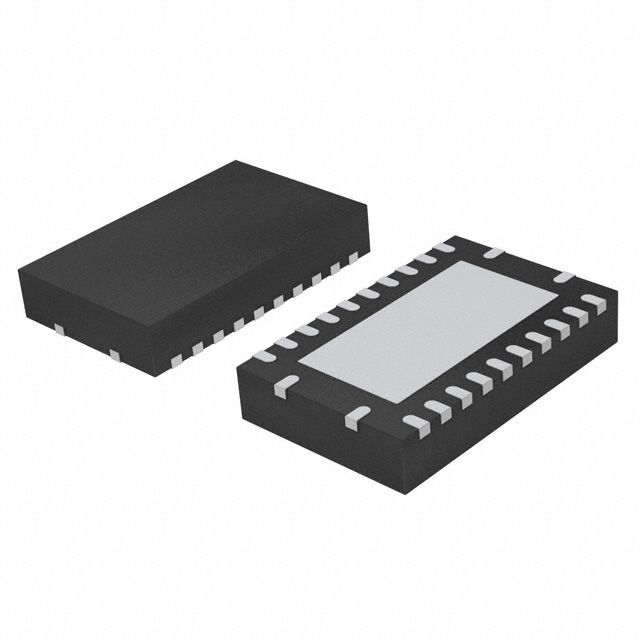

| Component Housing Style | 24-VFQFN Exposed Pad | |
| Vendor Package Type | 24-DHVQFN (5.5x3.5) |
Description
Delivers a -3dB bandwidth of 100MHz to maintain reliable signal quality. Offers off-state channel capacitance of 3.5pF. Ensures ΔRon alignment accuracy defined at 6Ohm. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 16:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 120Ohm for effective conduction. Peak resistance in the on-state 120Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 24-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 24-DHVQFN (5.5x3.5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Classification series for the product or component 74HC. Supplier package type 24-DHVQFN (5.5x3.5) for component selection. Maximum on/off switching duration Ton/Toff 45ns, 45ns for timing accuracy. Single voltage supply for electronic devices at V+ 2V ~ 10V.
