Description

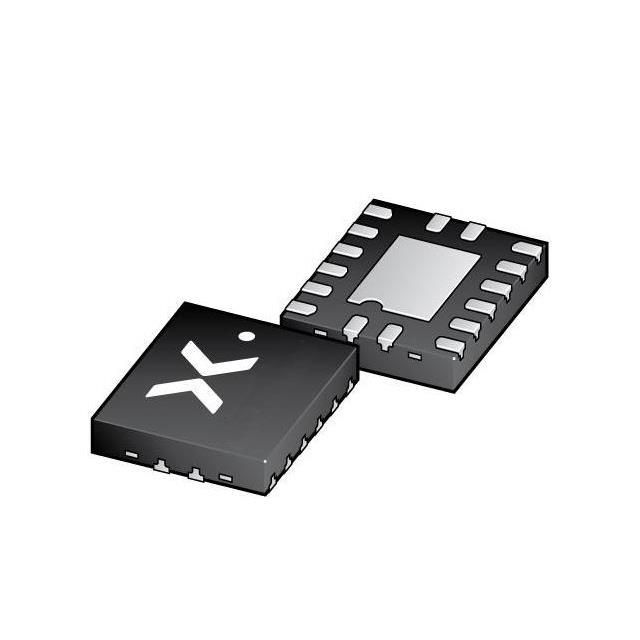

Delivers a -3dB bandwidth of 180MHz to maintain reliable signal quality. Offers off-state channel capacitance of 3.5pF. Ensures ΔRon alignment accuracy defined at 6Ohm. Minimizes crosstalk with a level of -60dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 2µA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 4:1 for signal control. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 180Ohm for effective conduction. Peak resistance in the on-state 180Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-XFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-DHXQFN (2x2.4) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74HC. Supplier package type 16-DHXQFN (2x2.4) for component selection. Circuit switch SP4T - NO for functional operations. Maximum on/off switching duration Ton/Toff 69ns, 57ns for timing accuracy. Single voltage supply for electronic devices at V+ 2V ~ 10V.
