Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 139.73000 | ₹ 6,98,650.00 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40000 | ₹ 141.39000 | ₹ 56,55,600.00 |
| 30000 | ₹ 144.04000 | ₹ 43,21,200.00 |
| 20000 | ₹ 150.39000 | ₹ 30,07,800.00 |
| 10000 | ₹ 156.75000 | ₹ 15,67,500.00 |
| 5000 | ₹ 163.10000 | ₹ 8,15,500.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | - | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 450mOhm | |
| Inter-Channel Resistance Match | 10mOhm (Typ) | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 24ns, 20ns (Typ) | |
| 3dB Bandwidth | 50MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 6pF | |
| Max Off-State Leakage | - | |
| Signal Interference Level | -70dB @ 100kHz | |
| Ambient Temp Range | - | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

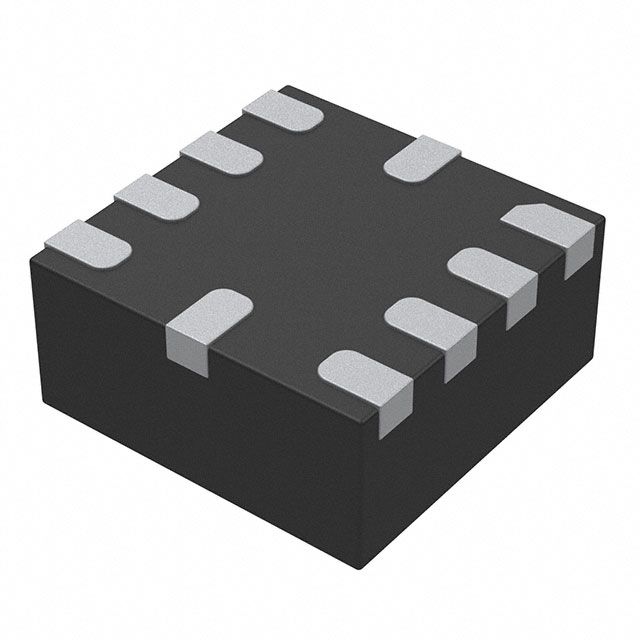

| Component Housing Style | 10-TFQFN | |
| Vendor Package Type | 10-QFN (2x2) |
Description
Delivers a -3dB bandwidth of 50MHz to maintain reliable signal quality. Offers off-state channel capacitance of 6pF. Ensures ΔRon alignment accuracy defined at 10mOhm (Typ). Minimizes crosstalk with a level of -70dB @ 100kHz for improved signal quality. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 450mOhm for effective conduction. Peak resistance in the on-state 450mOhm for electrical efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 10-TFQFN that offers mechanical and thermal protection. Type of package 10-QFN (2x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Supplier package type 10-QFN (2x2) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 24ns, 20ns (Typ) for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
