Stock:
Distributor: 160
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 1,819.16000 | ₹ 1,81,91,600.00 |
| 1000 | ₹ 1,933.08000 | ₹ 19,33,080.00 |
| 500 | ₹ 2,047.00000 | ₹ 10,23,500.00 |
| 100 | ₹ 2,160.03000 | ₹ 2,16,003.00 |
| 25 | ₹ 2,273.95000 | ₹ 56,848.75 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Obsolete | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 8:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 1.8kOhm | |
| Inter-Channel Resistance Match | 126Ohm | |
| Single Positive Supply | - | |
| Dual Symmetric Supply | ±15V | |
| Max On/Off Switching Time | 300ns, 300ns (Typ) | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 10pF, 25pF | |
| Max Off-State Leakage | 30pA (Typ) | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

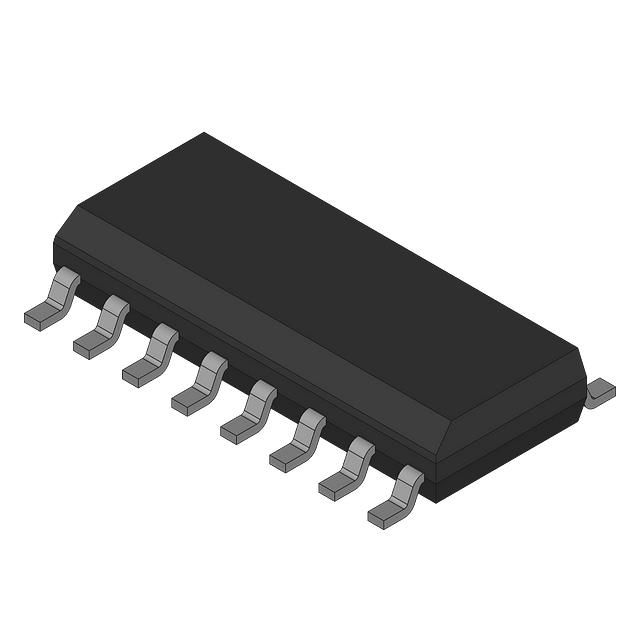

| Component Housing Style | 16-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 16-SOIC |
Description
Offers off-state channel capacitance of 10pF, 25pF. Ensures ΔRon alignment accuracy defined at 126Ohm. Highlights the maximum off-state leakage (IS(off)) rated at 30pA (Typ). Mounting configuration Surface Mount for structural stability. Mux/demux pathway 8:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 1.8kOhm for effective conduction. Peak resistance in the on-state 1.8kOhm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Bag for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 16-SOIC that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-SOIC for component selection. Maximum on/off switching duration Ton/Toff 300ns, 300ns (Typ) for timing accuracy. Dual voltage supply for circuits at V± ±15V.
