Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SP4T | |
| Signal Mux/Demux Channels | 4:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | - | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 4.75V ~ 5.25V | |
| Dual Symmetric Supply | ±4.75V ~ 5.25V | |
| Max On/Off Switching Time | 35ns, 10ns | |
| 3dB Bandwidth | 300MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | - | |
| Max Off-State Leakage | - | |
| Signal Interference Level | -75dB @ 10MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

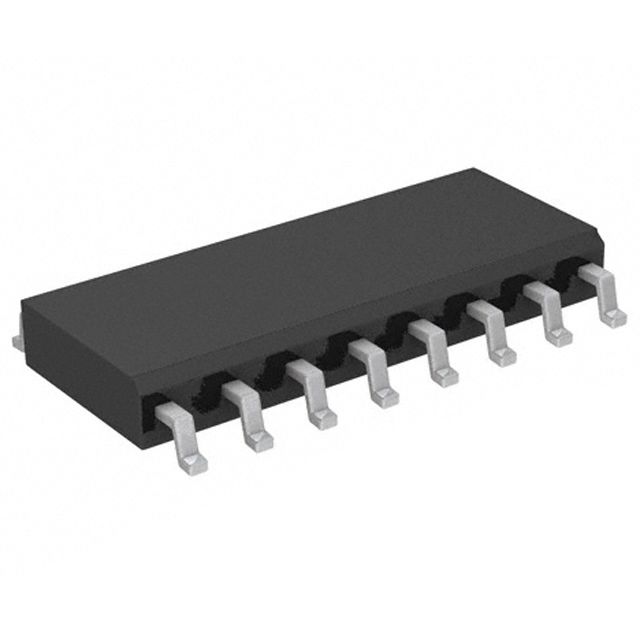

| Component Housing Style | 16-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 16-SOP |
Description
Delivers a -3dB bandwidth of 300MHz to maintain reliable signal quality. Minimizes crosstalk with a level of -75dB @ 10MHz for improved signal quality. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 4:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 16-SOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-SOP for component selection. Circuit switch SP4T for functional operations. Maximum on/off switching duration Ton/Toff 35ns, 10ns for timing accuracy. Dual voltage supply for circuits at V± ±4.75V ~ 5.25V. Single voltage supply for electronic devices at V+ 4.75V ~ 5.25V.
