Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 11Ohm | |
| Inter-Channel Resistance Match | 150mOhm | |
| Single Positive Supply | 1.65V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 5.2ns, 4.5ns | |
| 3dB Bandwidth | 350MHz | |
| Charge Transfer Effect | 7pC | |
| Off-State Channel Capacitance | 2.5pF | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | -64dB @ 10MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

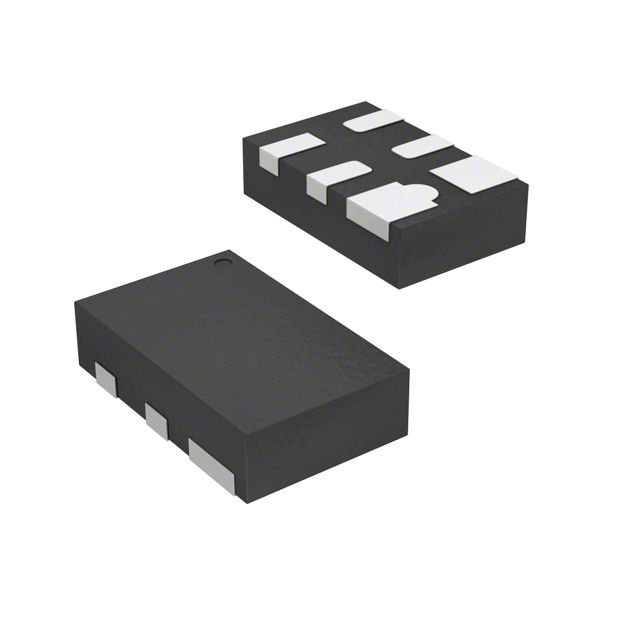

| Component Housing Style | 6-UFDFN | |
| Vendor Package Type | 6-UDFN (1x1) |
Description
Delivers a -3dB bandwidth of 350MHz to maintain reliable signal quality. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Offers off-state channel capacitance of 2.5pF. Ensures ΔRon alignment accuracy defined at 150mOhm. Provides charge injection capability rated at 7pC. Minimizes crosstalk with a level of -64dB @ 10MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 11Ohm for effective conduction. Peak resistance in the on-state 11Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 6-UFDFN that offers mechanical and thermal protection. Type of package 6-UDFN (1x1) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 6-UDFN (1x1) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 5.2ns, 4.5ns for timing accuracy. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Single voltage supply for electronic devices at V+ 1.65V ~ 5.5V.
