Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SP4T | |
| Signal Mux/Demux Channels | 4:1 | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 110Ohm | |
| Inter-Channel Resistance Match | 6Ohm | |
| Single Positive Supply | 3V ~ 10V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 81ns, 48ns | |
| 3dB Bandwidth | 70MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | - | |
| Max Off-State Leakage | 2µA | |
| Signal Interference Level | -120dB @ 1kHz | |
| Ambient Temp Range | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

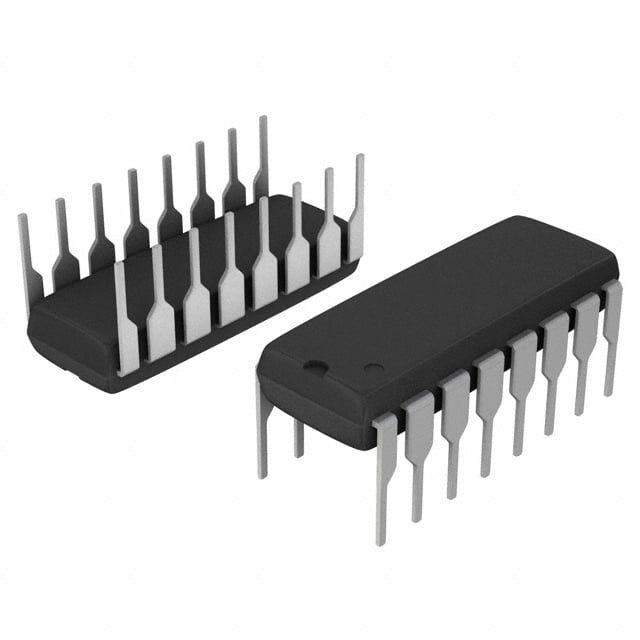

| Component Housing Style | 16-DIP (0.300", 7.62mm) | |
| Vendor Package Type | 16-DIP |
Description
Delivers a -3dB bandwidth of 70MHz to maintain reliable signal quality. Ensures ΔRon alignment accuracy defined at 6Ohm. Minimizes crosstalk with a level of -120dB @ 1kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 2µA. Mounting configuration Through Hole for structural stability. Mux/demux pathway 4:1 for signal control. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 110Ohm for effective conduction. Peak resistance in the on-state 110Ohm for electrical efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-DIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 16-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-DIP for component selection. Circuit switch SP4T for functional operations. Maximum on/off switching duration Ton/Toff 81ns, 48ns for timing accuracy. Single voltage supply for electronic devices at V+ 3V ~ 10V.
