Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 237.63000 | ₹ 11,88,150.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 240.00000 | ₹ 12,00,000.00 |
| 500 | ₹ 240.00000 | ₹ 1,20,000.00 |
| 250 | ₹ 257.38000 | ₹ 64,345.00 |
| 100 | ₹ 286.85000 | ₹ 28,685.00 |
| 25 | ₹ 346.85000 | ₹ 8,671.25 |
| 10 | ₹ 399.98000 | ₹ 3,999.80 |
| 1 | ₹ 604.03000 | ₹ 604.03 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 3.5Ohm | |
| Inter-Channel Resistance Match | 150mOhm | |
| Single Positive Supply | 3V ~ 5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 12ns, 6ns | |
| 3dB Bandwidth | 400MHz | |
| Charge Transfer Effect | 6pC | |
| Off-State Channel Capacitance | 5pF, 7.5pF | |
| Max Off-State Leakage | 100pA | |
| Signal Interference Level | -70dB @ 10MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

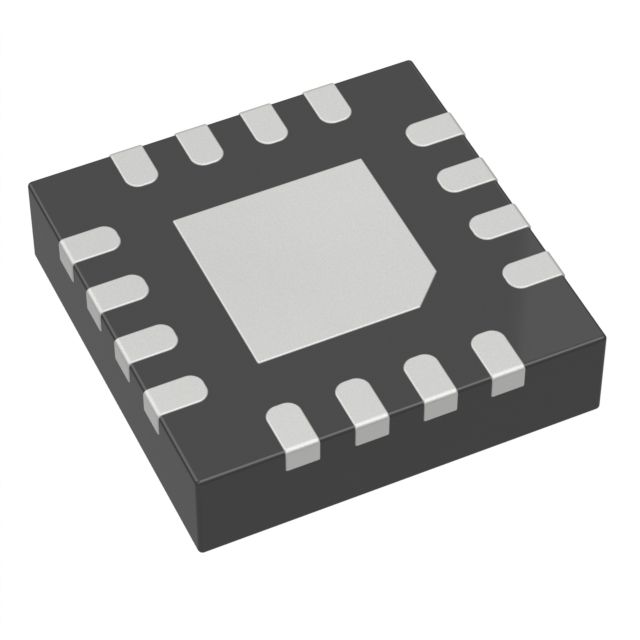

| Component Housing Style | 16-WFQFN Exposed Pad, CSP | |
| Vendor Package Type | 16-LFCSP-WQ (3x3) |
Description
Delivers a -3dB bandwidth of 400MHz to maintain reliable signal quality. Offers off-state channel capacitance of 5pF, 7.5pF. Ensures ΔRon alignment accuracy defined at 150mOhm. Provides charge injection capability rated at 6pC. Minimizes crosstalk with a level of -70dB @ 10MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100pA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 3.5Ohm for effective conduction. Peak resistance in the on-state 3.5Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-WFQFN Exposed Pad, CSP that offers mechanical and thermal protection. Type of package 16-LFCSP-WQ (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-LFCSP-WQ (3x3) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 12ns, 6ns for timing accuracy. Single voltage supply for electronic devices at V+ 3V ~ 5V.
