Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

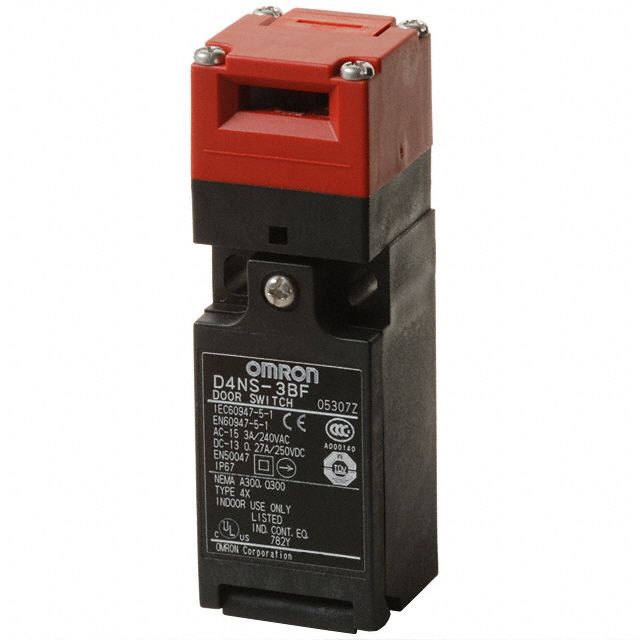

| Product Series Line | D4NS | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Device Type Classification | Non-Locking | |
| Electrical Pathway | 3PST-NC | |
| Ampere Capacity Rating | 3A (AC) | |
| Max Voltage Specification | 240VAC | |
| Power Supply Voltage | - | |
| Retention Grip Strength | 6kgf | |
| Activator Mechanism Type | Panel Disconnect | |
| Lead Termination Type | Screw Terminal | |
| Key Product Highlights | - | |
| Activation Threshold | - | |
| Deactivation Threshold | - | |
| Tubing Thread Gauge | 1/2" NPT | |
| Ambient Temp Range | -30°C ~ 70°C | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Certification Body | CCC, CE, cULus, TUV |
Description
Incorporates a Panel Disconnect actuator type to fulfill the desired function. Complies with the criteria of entities acknowledged as CCC, CE, cULus, TUV. Configured for circuit type described as 3PST-NC. Indicates conduit thread size rated at 1/2" NPT. Sets the ampere rating to 3A (AC). Delivers a grip strength of 6kgf for consistent mechanical reliability. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Temperature range -30°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component D4NS. Type of termination Screw Terminal for connector or device. Type classification Non-Locking for specifications. Voltage specification 240VAC for electronic devices.
