Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |

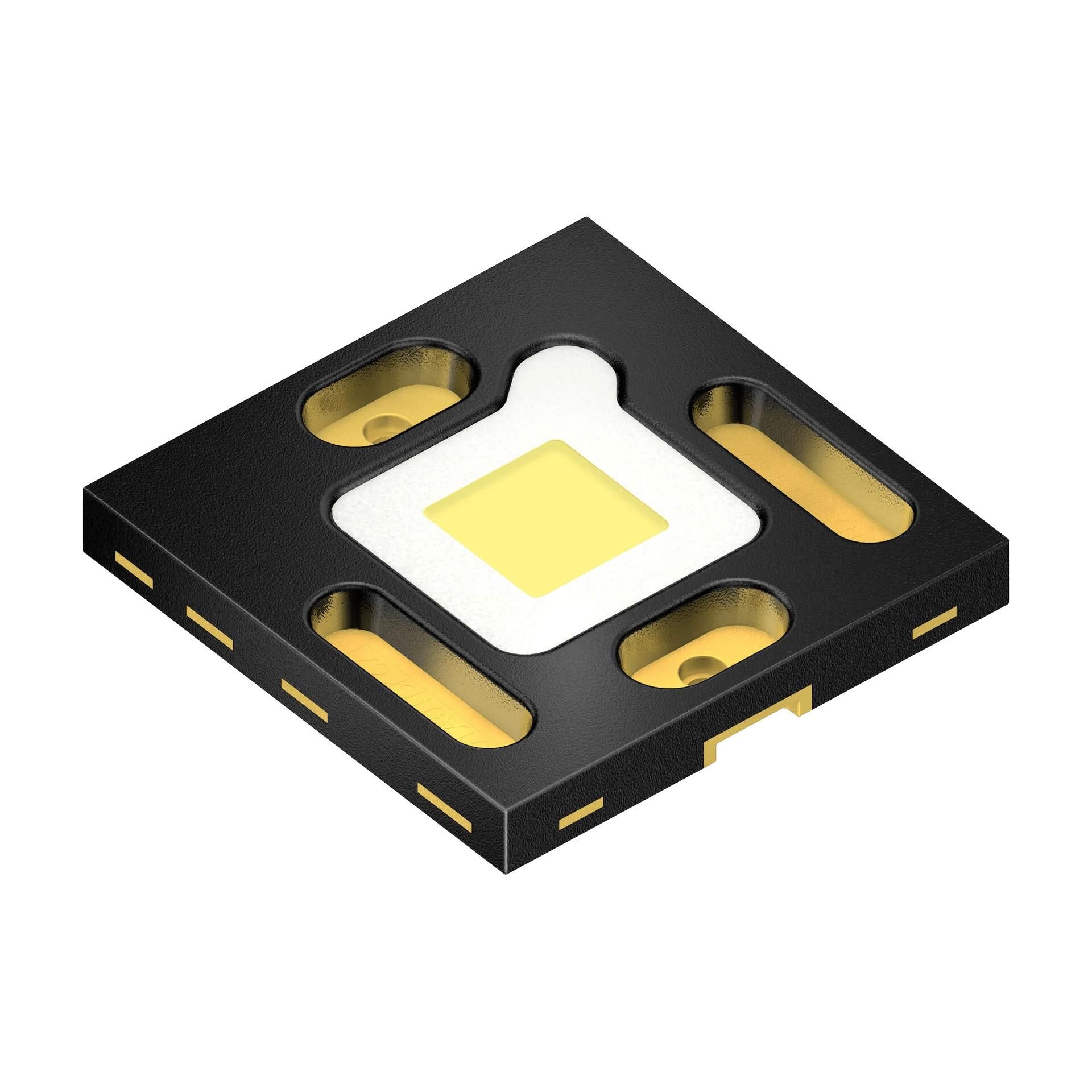

| Product Series Line | OSLON® Black Flat S | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Visual Hue | White | |
| Color Temperature Kelvin | - | |
| Flux at 85C Test Current | - | |
| Flux at 25C Test Current | 433lm (355lm ~ 510lm) | |
| Testing Current Value | 1A | |
| Typical Forward Voltage | 3.1V | |
| Efficiency Lumens per Watt | 144 lm/W | |
| Color Accuracy Rating | - | |
| Maximum Amp Rating | 1.5A | |
| Display View Cone Degrees | 120° | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 1515 (3838 Metric) | |
| Vendor Package Type | 1515 | |
| Package Size Specs | 0.148" L x 0.148" W (3.75mm x 3.75mm) | |
| Maximum Mounted Height | 0.022" (0.55mm) |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Offered in a shade referred to as White to enhance the system's aesthetics. Indicates the maximum allowable current rating at 1.5A. Assessed at current levels outlined by 1A. Presents flux at 25°C for the given test current of 433lm (355lm ~ 510lm). Maximum installed height of 0.022" (0.55mm) for components affixed to the board. The lumens per watt 144 lm/W evaluated at the testing current to determine lighting efficiency. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 1515 (3838 Metric) that offers mechanical and thermal protection. Type of package 1515 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component OSLON® Black Flat S. Details on package size 0.148" L x 0.148" W (3.75mm x 3.75mm) for electrical or mechanical components. Measurement dimensions 0.148" L x 0.148" W (3.75mm x 3.75mm) for component specifications. Supplier package type 1515 for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Viewing angle 120° for monitors. Common forward voltage Vf 3.1V for diode operation.
