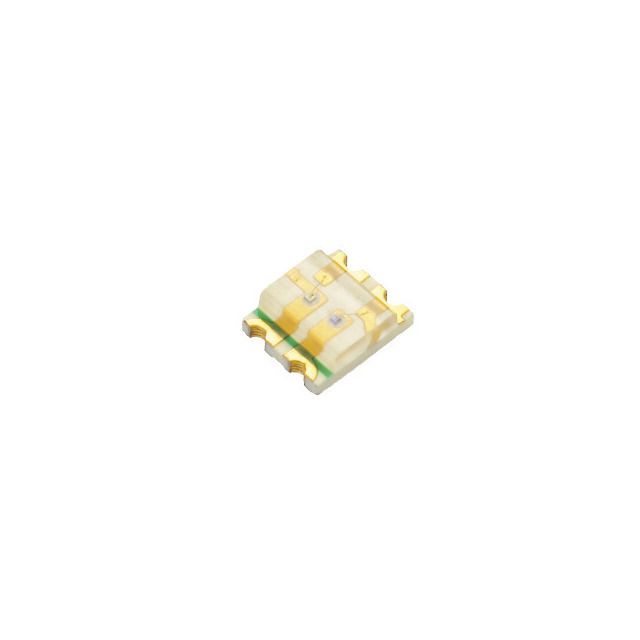

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Visual Hue | Red, Yellow | |
| Setup Arrangement | Independent | |
| Optical Lens Tint | Colorless | |
| Lens Clarity Level | Clear | |
| LED Brightness mcd | 45mcd Red, 75mcd Yellow | |
| Lens Shape Design | Rectangle with Flat Top | |
| Focal Lens Dimensions | 2.06mm x 2.70mm | |
| Typical Forward Voltage | 2V Red, 2V Yellow | |
| Testing Current Value | 20mA Red, 20mA Yellow | |
| Display View Cone Degrees | 130° | |
| Attachment Mounting Style | Surface Mount | |
| Primary Emission Wavelength | 631nm Red, 589nm Yellow | |
| Peak Intensity Wavelength | 639nm Red, 591nm Yellow | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Component Housing Style | 1210 (3225 Metric) | |
| Vendor Package Type | 4-SMD | |
| Package Size Specs | 3.20mm L x 2.70mm W | |
| Upper Height Limit | 1.10mm |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Offered in a shade referred to as Red, Yellow to enhance the system's aesthetics. Configured in a manner identified as Independent. Assessed at current levels outlined by 20mA Red, 20mA Yellow. Maintains a maximum height of 1.10mm to comply with design standards. Lens color Colorless for improved visual clarity or signaling. Lens dimensions 2.06mm x 2.70mm for proper fitting and application. Lens configuration Rectangle with Flat Top combining utility with aesthetic appeal. Lens transparency Clear ensuring maximum light passage. Millicandela measurement 45mcd Red, 75mcd Yellow for LED or light intensity. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 1210 (3225 Metric) that offers mechanical and thermal protection. Type of package 4-SMD that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Details on package size 3.20mm L x 2.70mm W for electrical or mechanical components. Measurement dimensions 3.20mm L x 2.70mm W for component specifications. Supplier package type 4-SMD for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Viewing angle 130° for monitors. Common forward voltage Vf 2V Red, 2V Yellow for diode operation. Primary wavelength of emission 631nm Red, 589nm Yellow for LEDs or optics. Wavelength at peak intensity 639nm Red, 591nm Yellow for optical devices.
