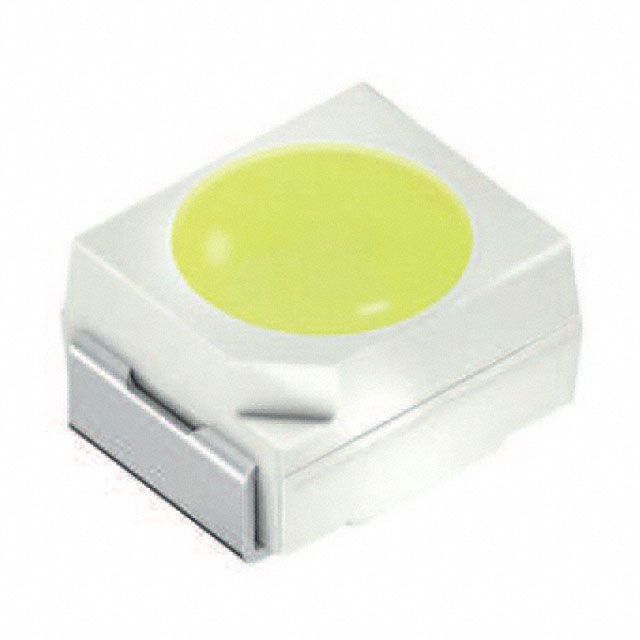

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | TOPLED® | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Visual Hue | White | |
| Setup Arrangement | Standard | |
| Optical Lens Tint | Yellow | |
| Lens Clarity Level | Diffused | |
| LED Brightness mcd | 2550mcd | |
| Lens Shape Design | Round with Flat Top | |
| Focal Lens Dimensions | 2.40mm Dia | |
| Typical Forward Voltage | 3.05V | |
| Testing Current Value | 20mA | |
| Display View Cone Degrees | 120° | |
| Attachment Mounting Style | Surface Mount | |
| Primary Emission Wavelength | - | |
| Peak Intensity Wavelength | - | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Component Housing Style | 2-PLCC | |
| Vendor Package Type | 2-PLCC | |
| Package Size Specs | 3.20mm L x 2.80mm W | |
| Upper Height Limit | 1.86mm |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Offered in a shade referred to as White to enhance the system's aesthetics. Configured in a manner identified as Standard. Assessed at current levels outlined by 20mA. Maintains a maximum height of 1.86mm to comply with design standards. Lens color Yellow for improved visual clarity or signaling. Lens dimensions 2.40mm Dia for proper fitting and application. Lens configuration Round with Flat Top combining utility with aesthetic appeal. Lens transparency Diffused ensuring maximum light passage. Millicandela measurement 2550mcd for LED or light intensity. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 2-PLCC that offers mechanical and thermal protection. Type of package 2-PLCC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component TOPLED®. Details on package size 3.20mm L x 2.80mm W for electrical or mechanical components. Measurement dimensions 3.20mm L x 2.80mm W for component specifications. Supplier package type 2-PLCC for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Viewing angle 120° for monitors. Common forward voltage Vf 3.05V for diode operation.
