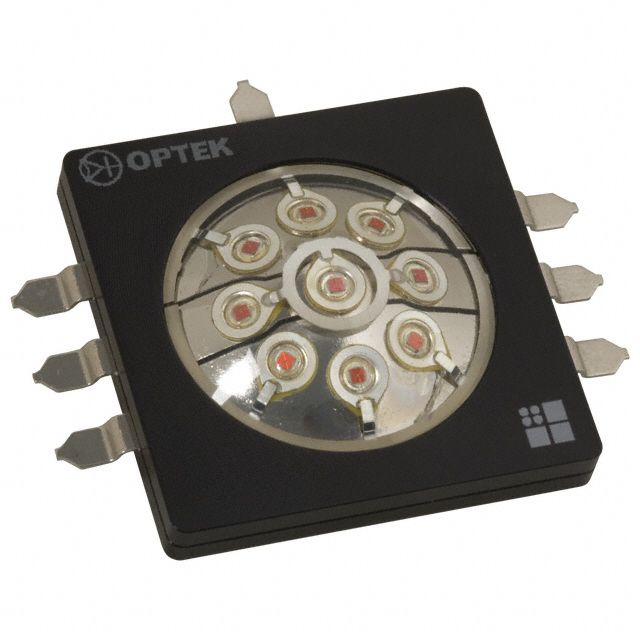

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Visual Hue | Amber | |
| Light Wavelength nm | 595nm (590nm ~ 600nm) | |
| Testing Current Value | 1.05A | |
| Typical Forward Voltage | 7V | |
| Efficiency Lumens per Watt | 45 lm/W | |
| Maximum Amp Rating | 1.05A | |
| Lumens at Specified Amps/Temp | 330lm (Typ) | |
| Testing Temperature Condition | 25°C | |
| Display View Cone Degrees | 120° | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 8-SMD (7 Leads), Gull Wing | |
| Vendor Package Type | SMD | |
| Package Size Specs | 1.299" L x 1.299" W (33.00mm x 33.00mm) | |
| Maximum Mounted Height | 0.315" (8.00mm) |
Description
Offered in a shade referred to as Amber to enhance the system's aesthetics. Indicates the maximum allowable current rating at 1.05A. Assessed at current levels outlined by 1.05A. Maximum installed height of 0.315" (8.00mm) for components affixed to the board. The lumens per watt 45 lm/W evaluated at the testing current to determine lighting efficiency. The luminous output 330lm (Typ) at specified current and temperature for reliable performance. Mounting configuration Surface Mount for structural stability. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 8-SMD (7 Leads), Gull Wing that offers mechanical and thermal protection. Type of package SMD that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Details on package size 1.299" L x 1.299" W (33.00mm x 33.00mm) for electrical or mechanical components. Measurement dimensions 1.299" L x 1.299" W (33.00mm x 33.00mm) for component specifications. Supplier package type SMD for component selection. The temperature condition for testing 25°C aimed at qualification procedures. Viewing angle 120° for monitors. Common forward voltage Vf 7V for diode operation. Wavelength of light 595nm (590nm ~ 600nm) for RF or optical devices.
