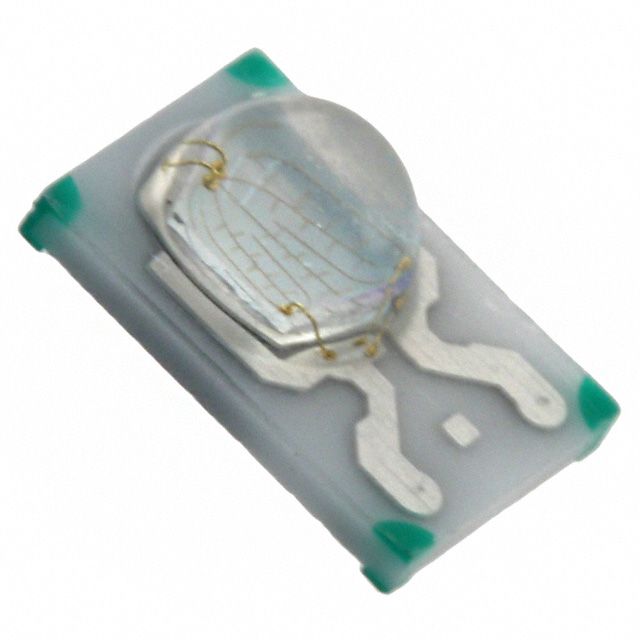

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SHUEN | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Visual Hue | Blue | |
| Light Wavelength nm | 465nm (460nm ~ 470nm) | |
| Testing Current Value | 350mA | |
| Typical Forward Voltage | 3.25V | |
| Efficiency Lumens per Watt | 11 lm/W | |
| Maximum Amp Rating | 600mA | |
| Lumens at Specified Amps/Temp | 15lm (13lm ~ 17lm) | |
| Testing Temperature Condition | 25°C | |
| Display View Cone Degrees | 120° | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 1218 (3246 Metric) | |
| Vendor Package Type | SMD | |
| Package Size Specs | 0.120" L x 0.177" W (3.05mm x 4.50mm) | |
| Maximum Mounted Height | 0.085" (2.15mm) |
Description
Offered in a shade referred to as Blue to enhance the system's aesthetics. Indicates the maximum allowable current rating at 600mA. Assessed at current levels outlined by 350mA. Maximum installed height of 0.085" (2.15mm) for components affixed to the board. The lumens per watt 11 lm/W evaluated at the testing current to determine lighting efficiency. The luminous output 15lm (13lm ~ 17lm) at specified current and temperature for reliable performance. Mounting configuration Surface Mount for structural stability. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 1218 (3246 Metric) that offers mechanical and thermal protection. Type of package SMD that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component SHUEN. Details on package size 0.120" L x 0.177" W (3.05mm x 4.50mm) for electrical or mechanical components. Measurement dimensions 0.120" L x 0.177" W (3.05mm x 4.50mm) for component specifications. Supplier package type SMD for component selection. The temperature condition for testing 25°C aimed at qualification procedures. Viewing angle 120° for monitors. Common forward voltage Vf 3.25V for diode operation. Wavelength of light 465nm (460nm ~ 470nm) for RF or optical devices.
