Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | SOLERIQ® S | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |

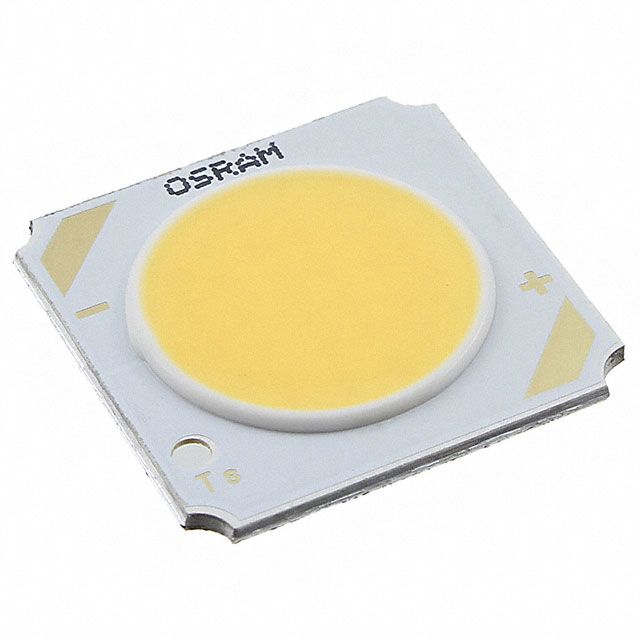

| Device Type Classification | Chip On Board (COB) | |
| Visual Hue | White, Warm | |
| Color Temperature Kelvin | 3000K | |
| Light Wavelength nm | - | |
| Setup Arrangement | Square | |
| Lumens at Specified Amps/Temp | 1600lm (1400lm ~ 1800lm) | |
| Testing Current Value | 500mA | |
| Testing Temperature Condition | 25°C | |
| Typical Forward Voltage | 33V | |
| Efficiency Lumens per Watt | 97 lm/W | |
| Maximum Amp Rating | 720mA | |
| Color Accuracy Rating | 80 | |
| Display View Cone Degrees | 120° | |
| Key Product Highlights | - | |
| Package Size Specs | 18.00mm L x 18.00mm W | |
| Vertical Dimension | 1.55mm | |
| LED Light Output Area | 13.20mm Dia | |
| Optical Element Category | Flat |
Description
Offers a correlated color temperature of 3000KK to create the desired lighting ambiance. Has a CRI score of 80 for accurate color depiction. Offered in a shade referred to as White, Warm to enhance the system's aesthetics. Configured in a manner identified as Square. Indicates the maximum allowable current rating at 720mA. Assessed at current levels outlined by 500mA. Features a height of 1.55mm for accurate dimensional precision. Employs 3000K light type for maximum brightness. Features Flat lens type tailored for specific application requirements. Light output zone 13.20mm Dia for efficient lighting. The lumens per watt 97 lm/W evaluated at the testing current to determine lighting efficiency. The luminous output 1600lm (1400lm ~ 1800lm) at specified current and temperature for reliable performance. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Classification series for the product or component SOLERIQ® S. Details on package size 18.00mm L x 18.00mm W for electrical or mechanical components. Measurement dimensions 18.00mm L x 18.00mm W for component specifications. The temperature condition for testing 25°C aimed at qualification procedures. Type classification Chip On Board (COB) for specifications. Viewing angle 120° for monitors. Common forward voltage Vf 33V for diode operation.
