Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Screen Output Layout | - | |
| Display Character Capacity | 2 | |
| Package Size Specs | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) | |
| Numeric/Alphabetic Font Size | 0.56" (14.22mm) | |

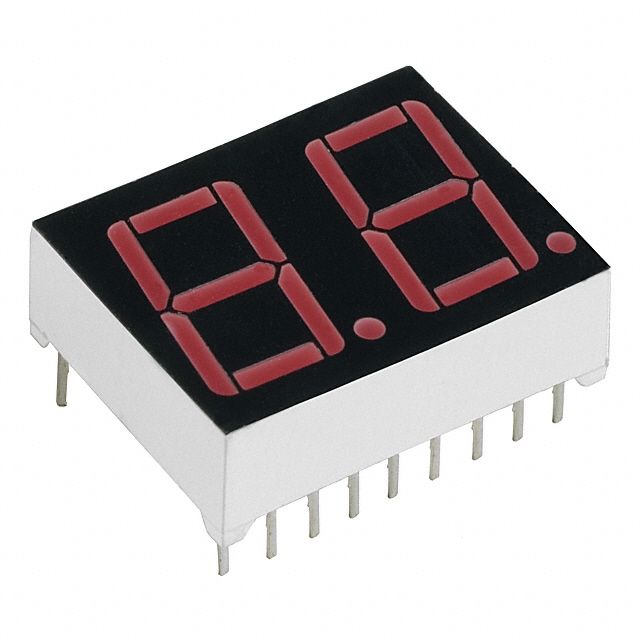

| Screen Technology Type | 7-Segment | |
| Shared Connection Point | Common Cathode | |
| Visual Hue | Red | |
| Typical Forward Voltage | 2V (Max) | |
| Testing Current Value | 20mA | |
| LED Brightness mcd | 0.42mcd | |
| Peak Intensity Wavelength | 650nm | |
| Max Heat Dissipation | 960mW | |
| Component Housing Style | 18-DIP (0.600", 15.24mm) |
Description
Offered in a shade referred to as Red to enhance the system's aesthetics. Includes a shared pin marked as Common Cathode for precise circuit identification. Assessed at current levels outlined by 20mA. Displays the size of digits or letters shown as 0.56" (14.22mm). Features a display type recognized as 7-Segment. Millicandela measurement 0.42mcd for LED or light intensity. Overall characters 2 for display or text representation. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 18-DIP (0.600", 15.24mm) that offers mechanical and thermal protection. The maximum power dissipation 960mW for efficient thermal management. Product status Obsolete concerning availability and lifecycle. Details on package size 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) for electrical or mechanical components. Measurement dimensions 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) for component specifications. Common forward voltage Vf 2V (Max) for diode operation. Wavelength at peak intensity 650nm for optical devices.
