Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Screen Output Layout | - | |
| Display Character Capacity | 1 | |
| Package Size Specs | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | |
| Numeric/Alphabetic Font Size | 0.30" (7.62mm) | |

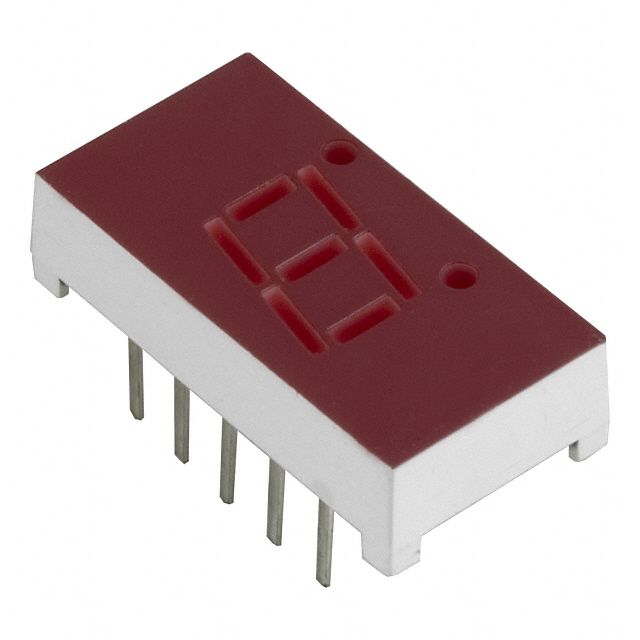

| Screen Technology Type | 7-Segment | |
| Shared Connection Point | Common Anode | |
| Visual Hue | Red | |
| Typical Forward Voltage | 2.5V (Max) | |
| Testing Current Value | 20mA | |
| LED Brightness mcd | 1.9mcd | |
| Peak Intensity Wavelength | 635nm | |
| Max Heat Dissipation | 600mW | |
| Component Housing Style | 14-DIP (0.300", 7.62mm), 11 Leads |
Description
Offered in a shade referred to as Red to enhance the system's aesthetics. Includes a shared pin marked as Common Anode for precise circuit identification. Assessed at current levels outlined by 20mA. Displays the size of digits or letters shown as 0.30" (7.62mm). Features a display type recognized as 7-Segment. Millicandela measurement 1.9mcd for LED or light intensity. Overall characters 1 for display or text representation. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-DIP (0.300", 7.62mm), 11 Leads that offers mechanical and thermal protection. The maximum power dissipation 600mW for efficient thermal management. Product status Obsolete concerning availability and lifecycle. Details on package size 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) for electrical or mechanical components. Measurement dimensions 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) for component specifications. Common forward voltage Vf 2.5V (Max) for diode operation. Wavelength at peak intensity 635nm for optical devices.
