Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 158.30000 | ₹ 1,58,300.00 |
| 500 | ₹ 167.26000 | ₹ 83,630.00 |
| 300 | ₹ 175.69000 | ₹ 52,707.00 |
| 100 | ₹ 195.61000 | ₹ 19,561.00 |
| 50 | ₹ 209.54000 | ₹ 10,477.00 |
| 25 | ₹ 224.67000 | ₹ 5,616.75 |
| 10 | ₹ 246.59000 | ₹ 2,465.90 |
| 1 | ₹ 313.91000 | ₹ 313.91 |

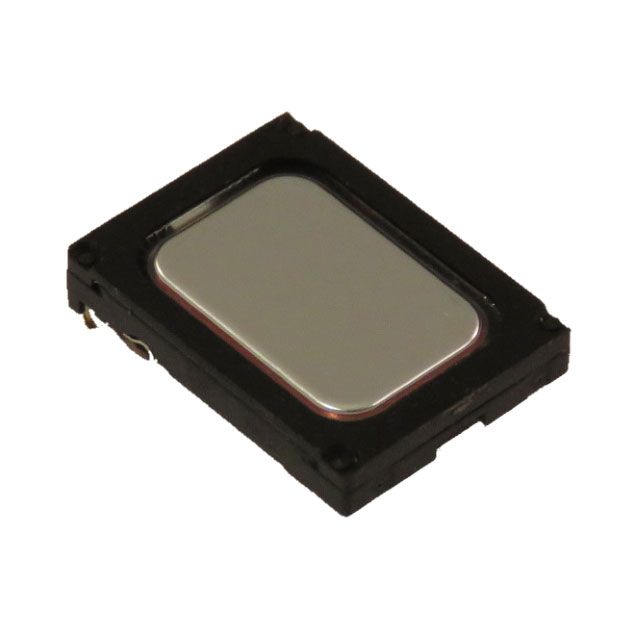

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Core Technology Platform | Magnetic | |
| Device Type Classification | General Purpose | |
| Operational Hz Spectrum | 500 Hz ~ 10 kHz | |
| Self-Resonance Frequency | 850Hz | |
| AC Resistance Value | 8 Ohms | |
| Noise Efficiency in dBA | 92.00 | |
| Tested Efficiency Metrics | 100mm | |
| Efficiency Measurement Method | Sound Pressure Level (SPL) | |
| Nominal Power Rating | 700 mW | |
| Maximum Power Handling | 1 W | |
| Connection Port Placement | Top | |
| Physical Shape Form | Rectangular | |
| Speaker Cone Material | - | |
| Magnetic Element Composition | - | |
| Dust Water Resistance Rating | IP67 - Dust Tight, Waterproof | |
| Performance Rating Specs | - | |
| Circuit End Method | Spring Type | |
| Package Size Specs | 0.591" L x 0.433" W (15.00mm x 11.00mm) | |
| Maximum Mounted Height | 0.118" (3.00mm) |
Description
Includes efficiency metrics assessed at 100mm. Shows the type of efficiency identified as Sound Pressure Level (SPL). Records efficiency measured at 92.00 dBA. Features a 850Hz self-resonant frequency that enhances component efficiency. Offers a 500 Hz ~ 10 kHz frequency spectrum for broad-spectrum applications. Maximum installed height of 0.118" (3.00mm) for components affixed to the board. Configured with 8 Ohms impedance to maintain signal quality. Rated with IP IP67 - Dust Tight, Waterproof to safeguard against dust and moisture penetration. Type of housing Tray for safeguarding or transporting components. The Top position of the port for installation reference. Energy requirement 700 mW for device functionality. Maximum power capability 1 W for safeguarding the device. Designated power 700 mW to meet compliance standards. Product status Active concerning availability and lifecycle. Shape Rectangular for the part or device. Details on package size 0.591" L x 0.433" W (15.00mm x 11.00mm) for electrical or mechanical components. Measurement dimensions 0.591" L x 0.433" W (15.00mm x 11.00mm) for component specifications. The primary technology platform Magnetic linked to the product category. Termination method Spring Type for electrical or mechanical connections. Type classification General Purpose for specifications.
