Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 255.32000 | ₹ 2,55,320.00 |
| 500 | ₹ 257.86000 | ₹ 1,28,930.00 |
| 300 | ₹ 270.75000 | ₹ 81,225.00 |
| 100 | ₹ 301.18000 | ₹ 30,118.00 |
| 50 | ₹ 322.46000 | ₹ 16,123.00 |
| 25 | ₹ 345.51000 | ₹ 8,637.75 |
| 10 | ₹ 379.07000 | ₹ 3,790.70 |
| 1 | ₹ 480.73000 | ₹ 480.73 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 475.26000 | ₹ 475.26 |
| 10 | ₹ 374.69000 | ₹ 3,746.90 |
| 25 | ₹ 340.87000 | ₹ 8,521.75 |
| 50 | ₹ 303.49000 | ₹ 15,174.50 |
| 100 | ₹ 296.37000 | ₹ 29,637.00 |
| 250 | ₹ 289.25000 | ₹ 72,312.50 |
| 480 | ₹ 287.47000 | ₹ 1,37,985.60 |

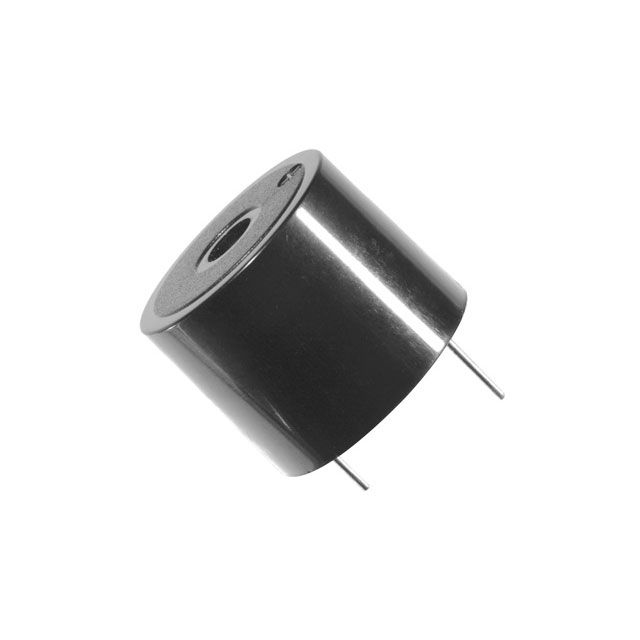

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Output Driver Electronics | Indicator, Internally Driven | |
| Entry Signal Category | AC | |
| Rated Operating Voltage | 220 V | |
| Voltage Operating Window | - | |
| Oscillation Rate Hz | 3.3kHz | |
| Core Technology Platform | Piezo | |
| Runtime Mode Selection | Single Tone | |
| Operational Time Span | - | |
| Audio Decibel Output | - | |
| Power Supply Amperage | 5mA | |
| Connection Port Placement | Top | |
| Ambient Temp Range | -20°C ~ 60°C | |
| Certification Body | - | |
| Performance Rating Specs | - | |
| Dust Water Resistance Rating | - | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | PC Pins | |
| Package Size Specs | 0.906" Dia (23.00mm) | |
| Maximum Mounted Height | 0.768" (19.50mm) |
Description
Employs supply current defined as 5mA. Incorporates the driver electronics classified as Indicator, Internally Driven. Runs at a frequency of 3.3kHz. Maximum installed height of 0.768" (19.50mm) for components affixed to the board. Configured with AC input type for diverse applications. Mounting configuration Through Hole for structural stability. Selected operational mode Single Tone for system configuration. Temperature range -20°C ~ 60°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. The Top position of the port for installation reference. Product status Active concerning availability and lifecycle. Details on package size 0.906" Dia (23.00mm) for electrical or mechanical components. Measurement dimensions 0.906" Dia (23.00mm) for component specifications. The primary technology platform Piezo linked to the product category. Termination method PC Pins for electrical or mechanical connections. The operating voltage rating of the device 220 V.
