Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 125000 | ₹ 4.76000 | ₹ 5,95,000.00 |
| 50000 | ₹ 4.80000 | ₹ 2,40,000.00 |
| 35000 | ₹ 4.97000 | ₹ 1,73,950.00 |
| 25000 | ₹ 5.14000 | ₹ 1,28,500.00 |
| 15000 | ₹ 5.45000 | ₹ 81,750.00 |
| 10000 | ₹ 5.70000 | ₹ 57,000.00 |
| 5000 | ₹ 6.21000 | ₹ 31,050.00 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40000 | ₹ 5.27000 | ₹ 2,10,800.00 |
| 30000 | ₹ 5.30000 | ₹ 1,59,000.00 |
| 20000 | ₹ 5.32000 | ₹ 1,06,400.00 |
| 10000 | ₹ 5.35000 | ₹ 53,500.00 |
| 5000 | ₹ 5.44000 | ₹ 27,200.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 41.83000 | ₹ 41.83 |
| 10 | ₹ 29.10000 | ₹ 291.00 |
| 100 | ₹ 14.77000 | ₹ 1,477.00 |
| 500 | ₹ 12.02000 | ₹ 6,010.00 |
| 1000 | ₹ 8.90000 | ₹ 8,900.00 |
| 2500 | ₹ 7.57000 | ₹ 18,925.00 |
| 5000 | ₹ 6.14000 | ₹ 30,700.00 |
| 10000 | ₹ 5.43000 | ₹ 54,300.00 |
| 25000 | ₹ 5.07000 | ₹ 1,26,750.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | - | |
| Two-Way Signal Paths | 1 | |
| Typical Standoff Voltage | 24V (Max) | |
| Minimum Breakdown Volts | 27.27V | |
| Max Clamp at Peak Current | 43V | |
| Peak Pulse 10/1000us | 1A (8/20µs) | |
| Pulse Peak Power | 350W | |
| AC Line Surge Guard | Yes | |
| Intended Uses | DVI, Ethernet, USB | |
| Capacitance at Specific Hz | 3pF @ 1MHz (Max) | |
| Ambient Temp Range | -55°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

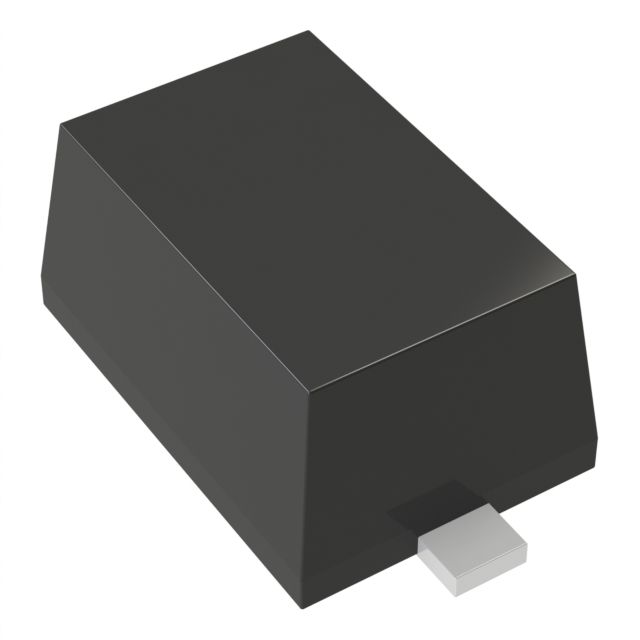

| Component Housing Style | SC-90, SOD-323F | |
| Vendor Package Type | SOD-323P |
Description
Perfectly designed for situations involving DVI, Ethernet, USB. Facilitates 1 channels for bidirectional communication. Delivers capacitance at a specified frequency of 3pF @ 1MHz (Max). Endures peak pulse current of 1A (8/20µs) in 10/1000µs conditions. Maximum signal delay 43V at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case SC-90, SOD-323F that offers mechanical and thermal protection. Type of package SOD-323P that preserves the integrity of the device. The utmost pulse power 350W to protect devices. Safeguard for power lines Yes against surges and disruptions. Product status Active concerning availability and lifecycle. Supplier package type SOD-323P for component selection. Type classification Zener for specifications. The lowest breakdown voltage value 27.27V for safety protocols. The highest clamping voltage 43V at peak current Ipp for surge protection. Standard reverse standoff voltage 24V (Max) for protection.
