Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ESD11N | |
| IC Encapsulation Type | Tape & Reel (TR)Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | - | |
| Two-Way Signal Paths | 1 | |
| Typical Standoff Voltage | 5V (Max) | |
| Minimum Breakdown Volts | 5.8V | |
| Max Clamp at Peak Current | 12V | |
| Peak Pulse 10/1000us | 1A (8/20µs) | |
| Pulse Peak Power | - | |
| AC Line Surge Guard | No | |
| Intended Uses | USB | |
| Capacitance at Specific Hz | - | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

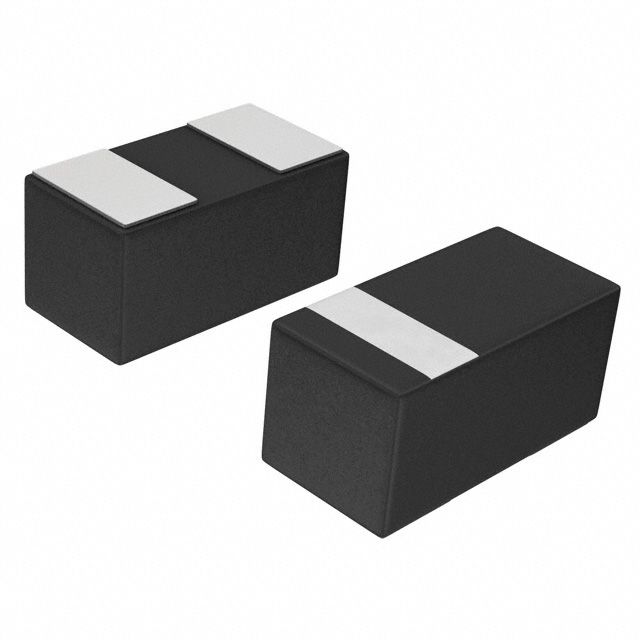

| Component Housing Style | 0201 (0603 Metric) | |
| Vendor Package Type | 2-DSN (0.60x0.30) |
Description
Perfectly designed for situations involving USB. Facilitates 1 channels for bidirectional communication. Endures peak pulse current of 1A (8/20µs) in 10/1000µs conditions. Maximum signal delay 12V at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 0201 (0603 Metric) that offers mechanical and thermal protection. Type of package 2-DSN (0.60x0.30) that preserves the integrity of the device. Safeguard for power lines No against surges and disruptions. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component ESD11N. Supplier package type 2-DSN (0.60x0.30) for component selection. Type classification Zener for specifications. The lowest breakdown voltage value 5.8V for safety protocols. The highest clamping voltage 12V at peak current Ipp for surge protection. Standard reverse standoff voltage 5V (Max) for protection.
