Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Device Type Classification | Zener | |
| One-Way Signal Paths | 1 | |
| Two-Way Signal Paths | - | |
| Typical Standoff Voltage | 15V | |
| Minimum Breakdown Volts | 16.7V | |
| Max Clamp at Peak Current | 24.4V | |
| Peak Pulse 10/1000us | 24A | |
| Pulse Peak Power | 600W | |
| AC Line Surge Guard | No | |
| Intended Uses | General Purpose | |
| Capacitance at Specific Hz | - | |
| Ambient Temp Range | -65°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

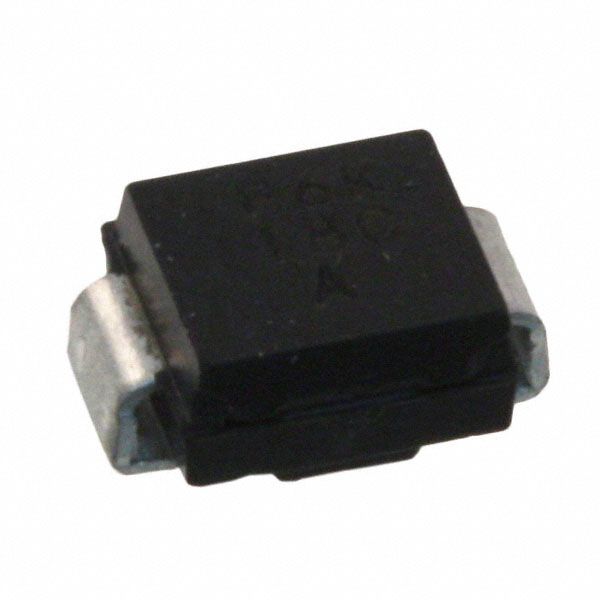

| Component Housing Style | DO-214AA, SMB | |
| Vendor Package Type | DO-214AA (SMBJ) |
Description
Perfectly designed for situations involving General Purpose. Endures peak pulse current of 24A in 10/1000µs conditions. Maximum signal delay 24.4V at voltage for applications sensitive to timing. Mounting configuration Surface Mount for structural stability. Temperature range -65°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case DO-214AA, SMB that offers mechanical and thermal protection. Type of package DO-214AA (SMBJ) that preserves the integrity of the device. The utmost pulse power 600W to protect devices. Safeguard for power lines No against surges and disruptions. Product status Active concerning availability and lifecycle. Supplier package type DO-214AA (SMBJ) for component selection. Type classification Zener for specifications. Unidirectional pathways 1 for communication. The lowest breakdown voltage value 16.7V for safety protocols. The highest clamping voltage 24.4V at peak current Ipp for surge protection. Standard reverse standoff voltage 15V for protection.
