Description

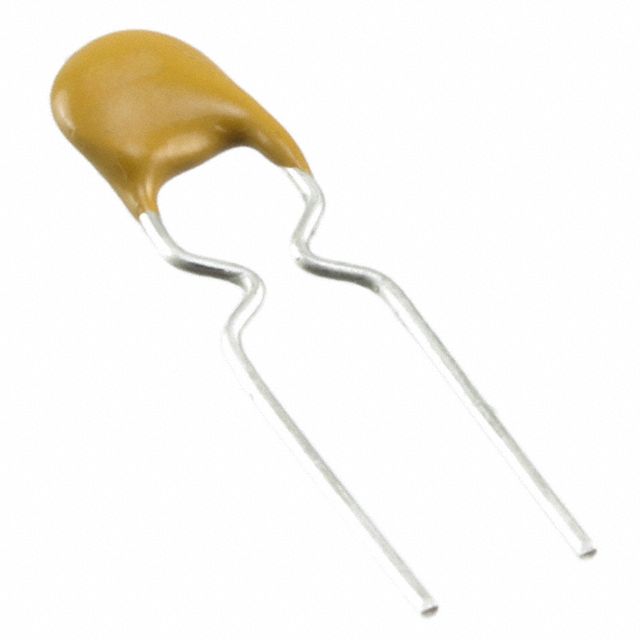

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Indicates the maximum holding current recorded at 250 mA. Indicates the maximum allowable current rating at 40 A. Delivers trip current recorded at 500 mA. Maximum installed height of 0.500" (12.70mm) for components affixed to the board. Lead spacing 0.201" (5.10mm) to meet PCB design requirements. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial, Disc that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. The baseline initial resistance (Ri) 1 Ohms established for evaluating performance. The highest post-trip resistance (R1) 3 Ohms designed to safeguard the circuit. Classification series for the product or component PFRA. Details on package size 0.291" Dia x 0.122" T (7.40mm x 3.10mm) for electrical or mechanical components. Measurement dimensions 0.291" Dia x 0.122" T (7.40mm x 3.10mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Time required to trip 2.5 s for safety systems. Type classification Polymeric for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The maximum voltage 60V specified by the device.
