Description

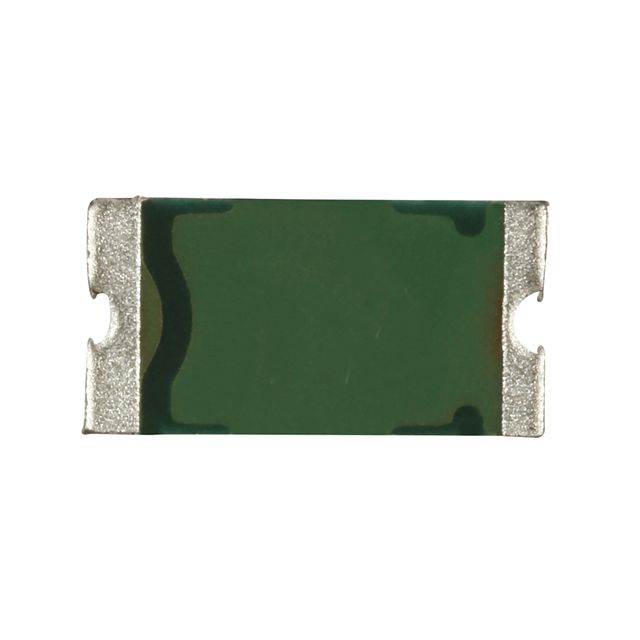

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Indicates the maximum holding current recorded at 350 mA. Indicates the maximum allowable current rating at 40 A. Delivers trip current recorded at 750 mA. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1206 (3216 Metric), Concave that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Certification AEC-Q200 for compliance with testing or regulatory standards. The baseline initial resistance (Ri) 100 mOhms established for evaluating performance. The highest post-trip resistance (R1) 1.35 Ohms designed to safeguard the circuit. Classification series for the product or component PTSA1206. Details on package size 0.132" L x 0.067" W (3.35mm x 1.70mm) for electrical or mechanical components. Measurement dimensions 0.132" L x 0.067" W (3.35mm x 1.70mm) for component specifications. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. The highest permissible thickness 0.039" (1.00mm) according to specification standards. Time required to trip 100 ms for safety systems. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The maximum voltage 16V specified by the device.
