Description

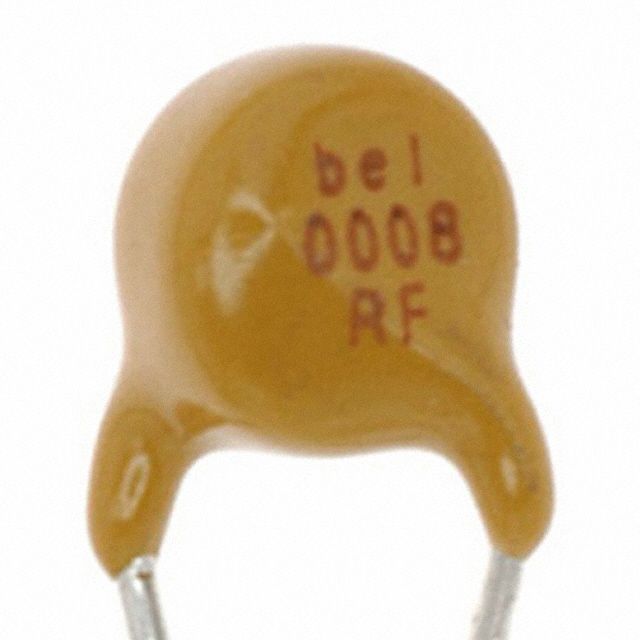

Indicates the maximum holding current recorded at 80 mA. Indicates the maximum allowable current rating at 3 A. Delivers trip current recorded at 240 mA. Maximum installed height of 0.378" (9.60mm) for components affixed to the board. Lead spacing 0.197" (5.00mm) to meet PCB design requirements. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Style of the enclosure/case Radial, Disc that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. The baseline initial resistance (Ri) 14 Ohms established for evaluating performance. The highest post-trip resistance (R1) 33 Ohms designed to safeguard the circuit. Classification series for the product or component 0ZRF. Details on package size 0.288" L x 0.181" W (5.80mm x 4.60mm) for electrical or mechanical components. Measurement dimensions 0.288" L x 0.181" W (5.80mm x 4.60mm) for component specifications. Time required to trip 4 s for safety systems. Type classification Polymeric for specifications. The maximum voltage 60V specified by the device.
