Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50000 | ₹ 20.14000 | ₹ 10,07,000.00 |
| 25000 | ₹ 20.44000 | ₹ 5,11,000.00 |
| 8000 | ₹ 22.39000 | ₹ 1,79,120.00 |
| 5000 | ₹ 23.01000 | ₹ 1,15,050.00 |
| 3000 | ₹ 23.35000 | ₹ 70,050.00 |
| 500 | ₹ 26.37000 | ₹ 13,185.00 |
| 100 | ₹ 31.44000 | ₹ 3,144.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 22.17000 | ₹ 1,10,850.00 |
| 1000 | ₹ 26.82000 | ₹ 26,820.00 |
| 500 | ₹ 29.09000 | ₹ 14,545.00 |
| 250 | ₹ 31.53000 | ₹ 7,882.50 |
| 100 | ₹ 35.07000 | ₹ 3,507.00 |
| 50 | ₹ 38.01000 | ₹ 1,900.50 |
| 10 | ₹ 45.84000 | ₹ 458.40 |
| 5 | ₹ 49.59000 | ₹ 247.95 |
| 1 | ₹ 59.76000 | ₹ 59.76 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 23.43000 | ₹ 23,430.00 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 434 | ₹ 32.89000 | ₹ 14,274.26 |
| 109 | ₹ 41.12000 | ₹ 4,482.08 |
| 1 | ₹ 82.24000 | ₹ 82.24 |

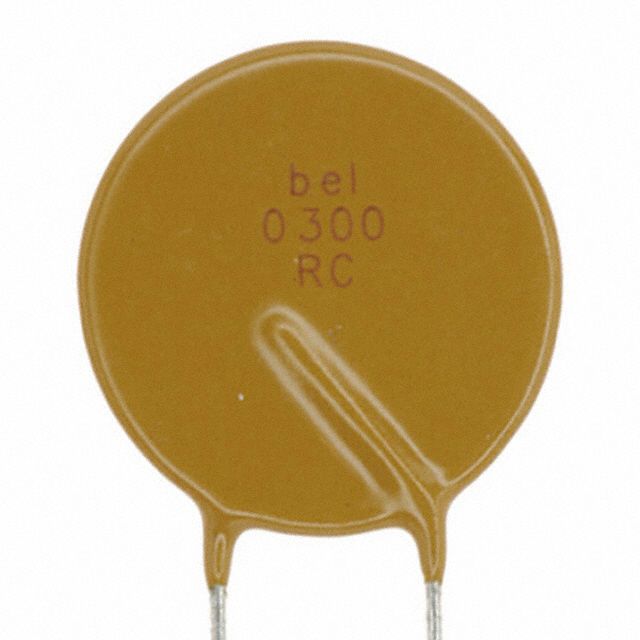

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 0ZRC | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Device Type Classification | Polymeric | |
| Peak Voltage Tolerance | 90V | |
| Maximum Holding Current | 3 A | |
| Trip Threshold Current | 6 A | |
| Maximum Amp Rating | 40 A | |
| Fault Trip Duration | 19.8 s | |
| Minimum Initial Resistance | 40 mOhms | |
| Max Post-Trip Resistance | 100 mOhms | |
| Typical Resistance at 25C | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q200 | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Disc | |
| Package Size Specs | 0.980" L x 0.122" W (24.90mm x 3.10mm) | |
| Maximum Mounted Height | 1.181" (30.00mm) | |
| Maximum Thickness Limit | - | |
| Pin Lead Gap | 0.402" (10.20mm) |
Description
Indicates the maximum holding current recorded at 3 A. Indicates the maximum allowable current rating at 40 A. Delivers trip current recorded at 6 A. Evaluated as Automotive grade for quality control. Maximum installed height of 1.181" (30.00mm) for components affixed to the board. Lead spacing 0.402" (10.20mm) to meet PCB design requirements. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Style of the enclosure/case Radial, Disc that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Certification AEC-Q200 for compliance with testing or regulatory standards. The baseline initial resistance (Ri) 40 mOhms established for evaluating performance. The highest post-trip resistance (R1) 100 mOhms designed to safeguard the circuit. Classification series for the product or component 0ZRC. Details on package size 0.980" L x 0.122" W (24.90mm x 3.10mm) for electrical or mechanical components. Measurement dimensions 0.980" L x 0.122" W (24.90mm x 3.10mm) for component specifications. Time required to trip 19.8 s for safety systems. Type classification Polymeric for specifications. The maximum voltage 90V specified by the device.
