Description

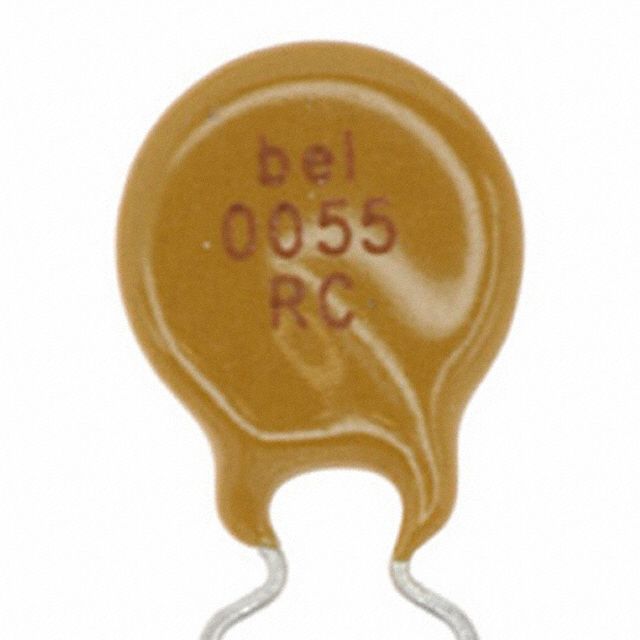

Indicates the maximum holding current recorded at 550 mA. Indicates the maximum allowable current rating at 40 A. Delivers trip current recorded at 1.2 A. Evaluated as Automotive grade for quality control. Maximum installed height of 0.551" (14.00mm) for components affixed to the board. Lead spacing 0.201" (5.10mm) to meet PCB design requirements. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Style of the enclosure/case Radial, Disc that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Certification AEC-Q200 for compliance with testing or regulatory standards. The baseline initial resistance (Ri) 400 mOhms established for evaluating performance. The highest post-trip resistance (R1) 1.5 Ohms designed to safeguard the circuit. Classification series for the product or component 0ZRC. Details on package size 0.382" L x 0.122" W (9.70mm x 3.10mm) for electrical or mechanical components. Measurement dimensions 0.382" L x 0.122" W (9.70mm x 3.10mm) for component specifications. Time required to trip 10 s for safety systems. Type classification Polymeric for specifications. The maximum voltage 90V specified by the device.
