Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 9000 | ₹ 4.88000 | ₹ 43,920.00 |
| 6000 | ₹ 5.27000 | ₹ 31,620.00 |
| 3000 | ₹ 5.79000 | ₹ 17,370.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 0ZCJ | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Polymeric | |
| Peak Voltage Tolerance | 60V | |
| Maximum Holding Current | 50 mA | |
| Trip Threshold Current | 150 mA | |
| Maximum Amp Rating | 10 A | |
| Fault Trip Duration | 1.5 s | |
| Minimum Initial Resistance | 3.6 Ohms | |
| Max Post-Trip Resistance | 50 Ohms | |
| Typical Resistance at 25C | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q200 | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |

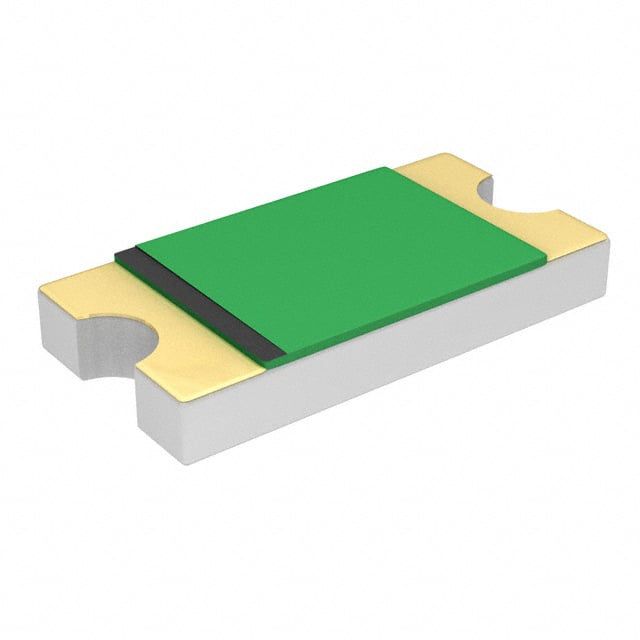

| Component Housing Style | 1206 (3216 Metric), Concave | |
| Package Size Specs | 0.128" L x 0.065" W (3.25mm x 1.65mm) | |
| Maximum Mounted Height | - | |
| Maximum Thickness Limit | 0.033" (0.85mm) | |
| Pin Lead Gap | - |
Description
Indicates the maximum holding current recorded at 50 mA. Indicates the maximum allowable current rating at 10 A. Delivers trip current recorded at 150 mA. Evaluated as Automotive grade for quality control. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1206 (3216 Metric), Concave that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Certification AEC-Q200 for compliance with testing or regulatory standards. The baseline initial resistance (Ri) 3.6 Ohms established for evaluating performance. The highest post-trip resistance (R1) 50 Ohms designed to safeguard the circuit. Classification series for the product or component 0ZCJ. Details on package size 0.128" L x 0.065" W (3.25mm x 1.65mm) for electrical or mechanical components. Measurement dimensions 0.128" L x 0.065" W (3.25mm x 1.65mm) for component specifications. The highest permissible thickness 0.033" (0.85mm) according to specification standards. Time required to trip 1.5 s for safety systems. Type classification Polymeric for specifications. The maximum voltage 60V specified by the device.
