Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10 | ₹ 10.98000 | ₹ 109.80 |
| 1 | ₹ 16.03000 | ₹ 16.03 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8000 | ₹ 12.74000 | ₹ 1,01,920.00 |
| 6000 | ₹ 12.93000 | ₹ 77,580.00 |
| 4000 | ₹ 13.13000 | ₹ 52,520.00 |
| 2000 | ₹ 13.42000 | ₹ 26,840.00 |

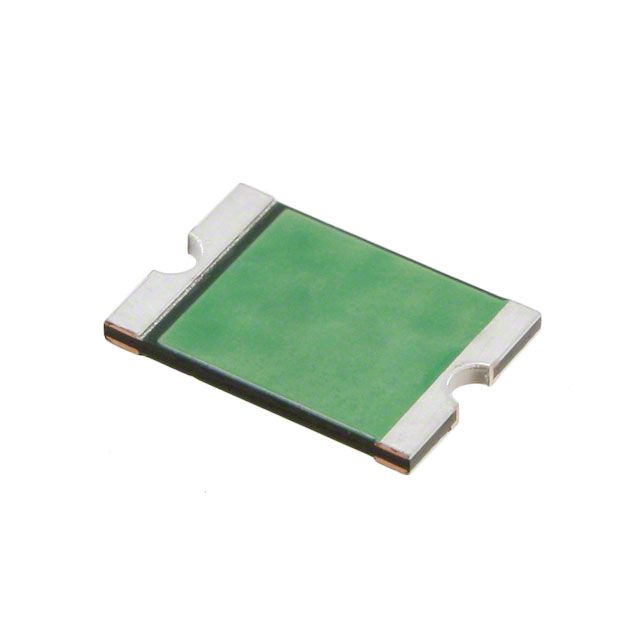

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 0ZCF | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Polymeric | |
| Peak Voltage Tolerance | 33V | |
| Maximum Holding Current | 1.5 A | |
| Trip Threshold Current | 3 A | |
| Maximum Amp Rating | 100 A | |
| Fault Trip Duration | 2 s | |
| Minimum Initial Resistance | 50 mOhms | |
| Max Post-Trip Resistance | 230 mOhms | |
| Typical Resistance at 25C | - | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Performance Rating Specs | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 2920 (7351 Metric), Concave | |
| Package Size Specs | 0.290" L x 0.202" W (7.36mm x 5.12mm) | |
| Maximum Mounted Height | - | |
| Maximum Thickness Limit | 0.035" (0.90mm) | |
| Pin Lead Gap | - |
Description
Indicates the maximum holding current recorded at 1.5 A. Indicates the maximum allowable current rating at 100 A. Delivers trip current recorded at 3 A. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 2920 (7351 Metric), Concave that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. The baseline initial resistance (Ri) 50 mOhms established for evaluating performance. The highest post-trip resistance (R1) 230 mOhms designed to safeguard the circuit. Classification series for the product or component 0ZCF. Details on package size 0.290" L x 0.202" W (7.36mm x 5.12mm) for electrical or mechanical components. Measurement dimensions 0.290" L x 0.202" W (7.36mm x 5.12mm) for component specifications. The highest permissible thickness 0.035" (0.90mm) according to specification standards. Time required to trip 2 s for safety systems. Type classification Polymeric for specifications. The maximum voltage 33V specified by the device.
