Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | VDRS | |
| IC Encapsulation Type | Tape & Box (TB) | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 420 V | |
| Peak DC Voltage Limit | 560 V | |
| Min Clamp Voltage | 612 V | |
| Typical Varistor Voltage | 680 V | |
| Max Clamp Voltage | 748 V | |
| Surge Current Tolerance | 400 A | |
| Stored Energy Capacity | 20J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 35 pF @ 1 kHz | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

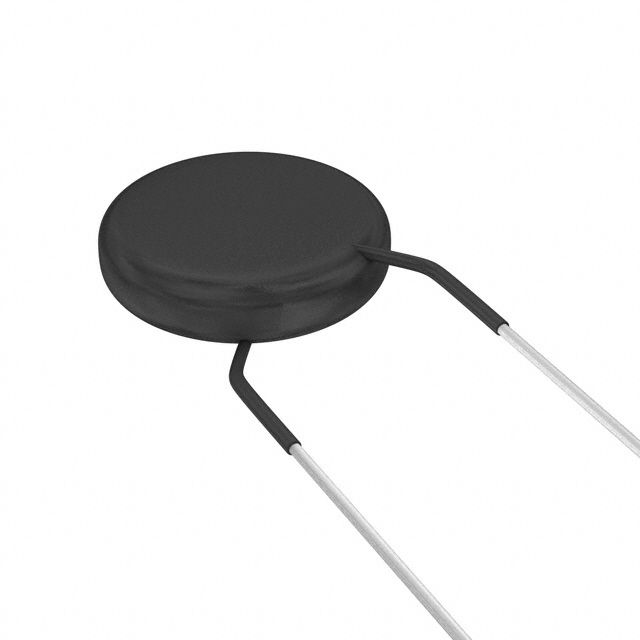

| Component Housing Style | Disc 7mm |
Description
Delivers capacitance at a specified frequency of 35 pF @ 1 kHz. Is capable of withstanding surge current levels marked at 400 A. Represents the energy capacity noted at 20J. Maximum signal delay 748 V at voltage for applications sensitive to timing. Maximum AC voltage 420 V for safe operation. Maximum DC voltage 560 V for safe electronic circuits. Mounting configuration Through Hole for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Box (TB) for safeguarding or transporting components. Style of the enclosure/case Disc 7mm that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component VDRS. Maximum varistor voltage 748 V for device protection. Minimum varistor voltage 612 V for device protection. Standard varistor voltage 680 V employed for circuit protection.
