Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | VDRH | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 385 V | |
| Peak DC Voltage Limit | 505 V | |
| Min Clamp Voltage | 558 V | |
| Typical Varistor Voltage | 620 V | |
| Max Clamp Voltage | 682 V | |
| Surge Current Tolerance | 3.5 kA | |
| Stored Energy Capacity | 107J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 180 pF @ 1 kHz | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

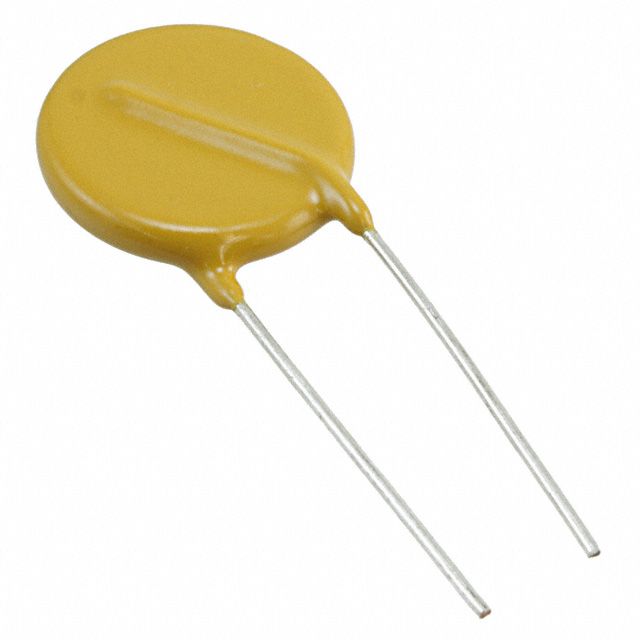

| Component Housing Style | Disc 12.50mm |
Description
Delivers capacitance at a specified frequency of 180 pF @ 1 kHz. Is capable of withstanding surge current levels marked at 3.5 kA. Represents the energy capacity noted at 107J. Maximum signal delay 682 V at voltage for applications sensitive to timing. Maximum AC voltage 385 V for safe operation. Maximum DC voltage 505 V for safe electronic circuits. Mounting configuration Through Hole for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Disc 12.50mm that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component VDRH. Maximum varistor voltage 682 V for device protection. Minimum varistor voltage 558 V for device protection. Standard varistor voltage 620 V employed for circuit protection.
