Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 7 V | |
| Peak DC Voltage Limit | 9 V | |
| Min Clamp Voltage | 11 V | |
| Typical Varistor Voltage | 12.5 V | |
| Max Clamp Voltage | 14 V | |
| Surge Current Tolerance | 40 A | |
| Stored Energy Capacity | 0.1J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 585 pF @ 1 MHz | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

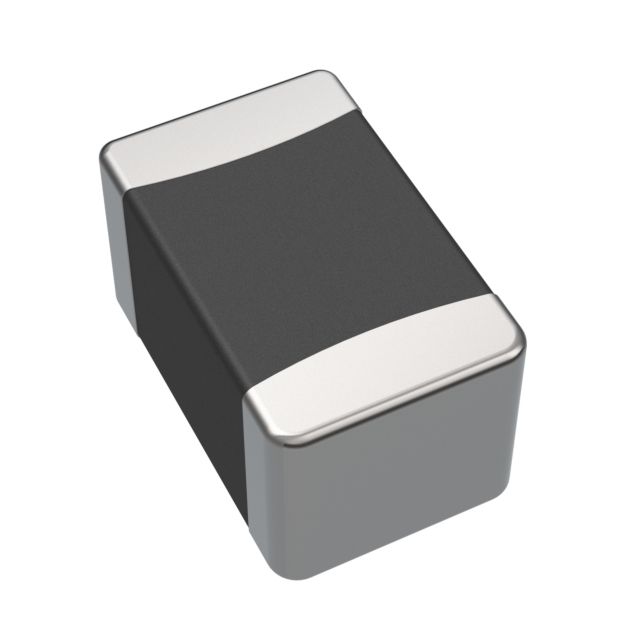

| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 0805 (2012 Metric) |
Description
Delivers capacitance at a specified frequency of 585 pF @ 1 MHz. Is capable of withstanding surge current levels marked at 40 A. Represents the energy capacity noted at 0.1J. Maximum signal delay 14 V at voltage for applications sensitive to timing. Maximum AC voltage 7 V for safe operation. Maximum DC voltage 9 V for safe electronic circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0805 (2012 Metric) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Maximum varistor voltage 14 V for device protection. Minimum varistor voltage 11 V for device protection. Standard varistor voltage 12.5 V employed for circuit protection.
