Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TransGuard® | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 4 V | |
| Peak DC Voltage Limit | 5.6 V | |
| Min Clamp Voltage | 6.8 V | |
| Typical Varistor Voltage | 8.5 V | |
| Max Clamp Voltage | 10.2 V | |
| Surge Current Tolerance | 40 A | |
| Stored Energy Capacity | 0.1J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 1200 pF @ 1 kHz | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount, MLCV | |

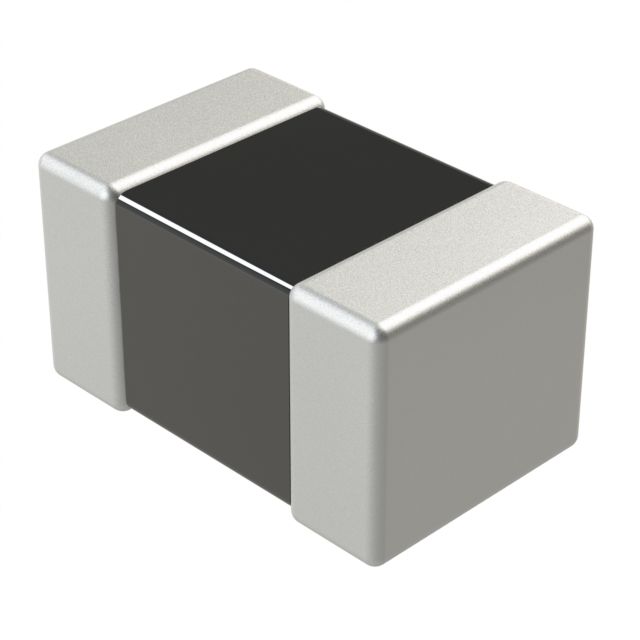

| Component Housing Style | 1206 (3216 Metric) |
Description
Delivers capacitance at a specified frequency of 1200 pF @ 1 kHz. Is capable of withstanding surge current levels marked at 40 A. Represents the energy capacity noted at 0.1J. Maximum signal delay 10.2 V at voltage for applications sensitive to timing. Maximum AC voltage 4 V for safe operation. Maximum DC voltage 5.6 V for safe electronic circuits. Mounting configuration Surface Mount, MLCV for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 1206 (3216 Metric) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component TransGuard®. Maximum varistor voltage 10.2 V for device protection. Minimum varistor voltage 6.8 V for device protection. Standard varistor voltage 8.5 V employed for circuit protection.
