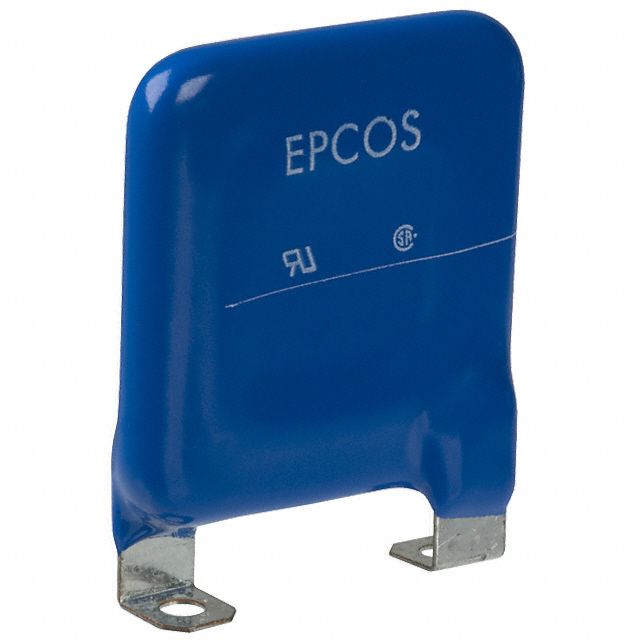

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | HighE | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 150 V | |
| Peak DC Voltage Limit | 200 V | |
| Min Clamp Voltage | 216 V | |
| Typical Varistor Voltage | 240 V | |
| Max Clamp Voltage | 264 V | |
| Surge Current Tolerance | 40 kA | |
| Stored Energy Capacity | 360J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 5200 pF @ 1 kHz | |
| Ambient Temp Range | -25°C ~ 85°C (TA) | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Component Housing Style | Square 37.5mm, Formed Tabs |
Description
Delivers capacitance at a specified frequency of 5200 pF @ 1 kHz. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Is capable of withstanding surge current levels marked at 40 kA. Represents the energy capacity noted at 360J. Maximum signal delay 264 V at voltage for applications sensitive to timing. Maximum AC voltage 150 V for safe operation. Maximum DC voltage 200 V for safe electronic circuits. Mounting configuration Chassis Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -25°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Square 37.5mm, Formed Tabs that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component HighE. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Maximum varistor voltage 264 V for device protection. Minimum varistor voltage 216 V for device protection. Standard varistor voltage 240 V employed for circuit protection. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
