Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Peak AC Voltage Rating | 6.4 V | |
| Peak DC Voltage Limit | 9 V | |
| Min Clamp Voltage | 12 V | |
| Typical Varistor Voltage | 14 V | |
| Max Clamp Voltage | 16 V | |
| Surge Current Tolerance | 1.2 kA | |
| Stored Energy Capacity | 2.7J | |
| Electrical Circuit Count | 1 | |
| Capacitance at Specific Hz | 7000 pF @ 1 kHz | |
| Ambient Temp Range | -55°C ~ 85°C (TA) | |
| Key Product Highlights | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

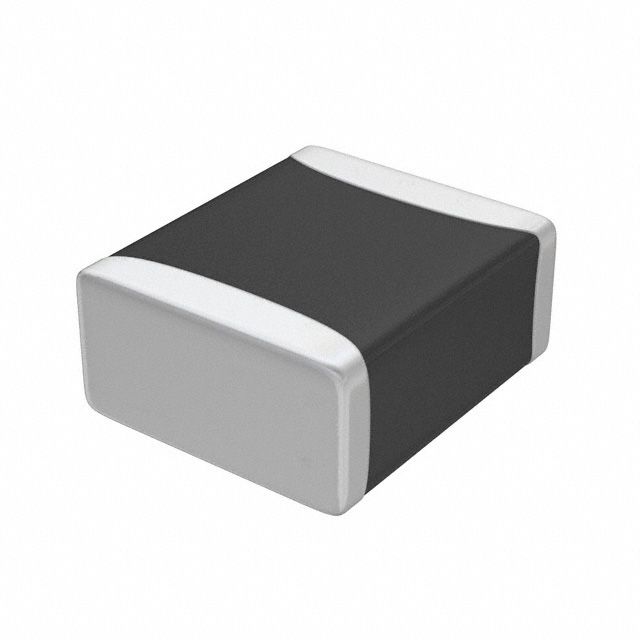

| Attachment Mounting Style | Surface Mount, MLCV | |
| Component Housing Style | 2220 (5750 Metric) |
Description
Delivers capacitance at a specified frequency of 7000 pF @ 1 kHz. Is capable of withstanding surge current levels marked at 1.2 kA. Represents the energy capacity noted at 2.7J. Maximum signal delay 16 V at voltage for applications sensitive to timing. Maximum AC voltage 6.4 V for safe operation. Maximum DC voltage 9 V for safe electronic circuits. Mounting configuration Surface Mount, MLCV for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Temperature range -55°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 2220 (5750 Metric) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Maximum varistor voltage 16 V for device protection. Minimum varistor voltage 12 V for device protection. Standard varistor voltage 14 V employed for circuit protection.
