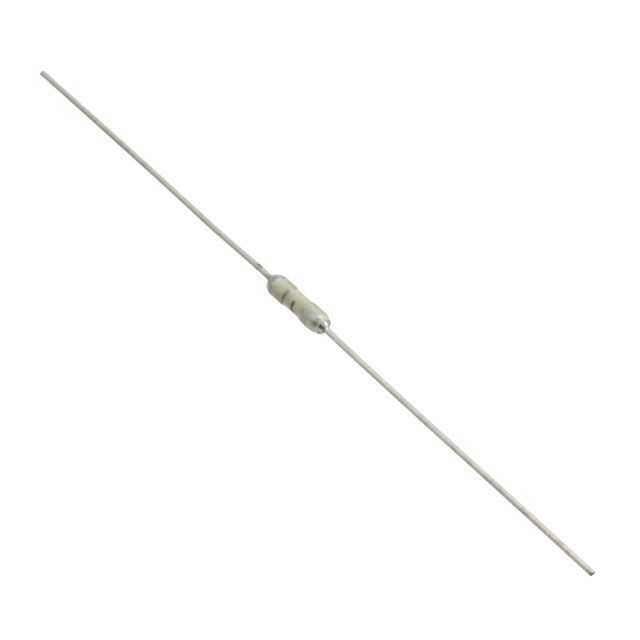

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 172322 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Through Hole | |
| Overcurrent Protection Style | Board Mount (Cartridge Style Excluded) | |
| Ampere Capacity Rating | 1 A | |
| AC Voltage Max | 125 V | |
| DC Voltage Max | 125 V | |
| Activation Speed ms | Fast Blow | |
| Component Housing Style | Cartridge, Non-Standard (Axial) | |
| Interrupt Rating at Voltage | 300A | |
| Thermal Melting Integral | 0.3 | |
| Certification Body | CSA, UR | |
| Ambient Temp Range | -55°C ~ 85°C | |
| Visual Hue | - | |
| Package Size Specs | 0.093" Dia x 0.315" L (2.36mm x 8.00mm) |
Description
Complies with the criteria of entities acknowledged as CSA, UR. Has a breaking capacity of 300A at its designated voltage. Sets the ampere rating to 1 A. Supports Board Mount (Cartridge Style Excluded) fuse specifications to meet safety standards. Melting I²t 0.3 for fuse or thermal protection. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Cartridge, Non-Standard (Axial) that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Time taken to respond Fast Blow for rapid operation or detection. Classification series for the product or component 172322. Details on package size 0.093" Dia x 0.315" L (2.36mm x 8.00mm) for electrical or mechanical components. Measurement dimensions 0.093" Dia x 0.315" L (2.36mm x 8.00mm) for component specifications. The highest AC voltage specification 125 V for the device. The highest DC voltage specification 125 V for components.
