Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 781.76000 | ₹ 7,81,760.00 |
| 500 | ₹ 809.61000 | ₹ 4,04,805.00 |
| 250 | ₹ 838.44000 | ₹ 2,09,610.00 |
| 100 | ₹ 878.10000 | ₹ 87,810.00 |
| 50 | ₹ 909.33000 | ₹ 45,466.50 |
| 25 | ₹ 941.64000 | ₹ 23,541.00 |
| 10 | ₹ 986.07000 | ₹ 9,860.70 |
| 1 | ₹ 1,106.73000 | ₹ 1,106.73 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 799.93000 | ₹ 3,999.65 |
| 25 | ₹ 783.73000 | ₹ 19,593.25 |
| 100 | ₹ 768.78000 | ₹ 76,878.00 |
| 350 | ₹ 752.58000 | ₹ 2,63,403.00 |
| 1000 | ₹ 671.59000 | ₹ 6,71,590.00 |
| 2500 | ₹ 629.23000 | ₹ 15,73,075.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 857.10000 | ₹ 857.10 |
| 5 | ₹ 839.96000 | ₹ 4,199.80 |
| 10 | ₹ 822.82000 | ₹ 8,228.20 |
| 20 | ₹ 805.68000 | ₹ 16,113.60 |
| 50 | ₹ 788.54000 | ₹ 39,427.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

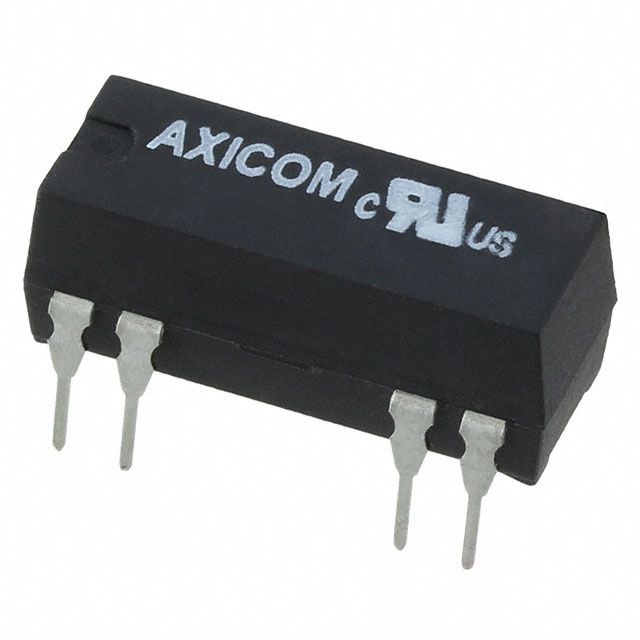

| Product Series Line | V23100-V4, AXICOM | |
| IC Encapsulation Type | Tube | |
| Availability Status | Not For New Designs | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 15VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 500 mA | |
| Switch Rated Volts | 200VAC, 200VDC - Max | |
| Electromagnet Amp Draw | 7.5 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Minimum Activation Volts | 10.5 VDC | |
| Release Voltage Level | 2.25 VDC | |
| Activation Response Time | 0.75 ms | |
| Reset Response Duration | 0.15 ms | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Pin Alloy Composition | Ruthenium (Ru) |
Description
Supports coil current measured at 7.5 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 15VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Constructed from the contact material known as Ruthenium (Ru). Supports a contact current rating of 500 mA. Mounting configuration Through Hole for structural stability. Needs a voltage of 10.5 VDC for effective activation. Requires a release voltage of 2.25 VDC for reliable functioning. Time duration 0.75 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Not For New Designs concerning availability and lifecycle. Duration required 0.15 ms for reset and reaction. Classification series for the product or component V23100-V4, AXICOM. The switch's voltage specification 200VAC, 200VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
