Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 554.47000 | ₹ 27,72,350.00 |
| 2500 | ₹ 557.14000 | ₹ 13,92,850.00 |
| 1000 | ₹ 559.81000 | ₹ 5,59,810.00 |
| 500 | ₹ 573.16000 | ₹ 2,86,580.00 |
| 250 | ₹ 595.41000 | ₹ 1,48,852.50 |
| 100 | ₹ 625.67000 | ₹ 62,567.00 |
| 50 | ₹ 653.26000 | ₹ 32,663.00 |
| 25 | ₹ 660.38000 | ₹ 16,509.50 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 893.56000 | ₹ 893.56 |
| 10 | ₹ 789.43000 | ₹ 7,894.30 |
| 25 | ₹ 734.25000 | ₹ 18,356.25 |
| 50 | ₹ 707.55000 | ₹ 35,377.50 |
| 100 | ₹ 677.29000 | ₹ 67,729.00 |
| 250 | ₹ 647.92000 | ₹ 1,61,980.00 |
| 500 | ₹ 630.12000 | ₹ 3,15,060.00 |
| 1000 | ₹ 619.44000 | ₹ 6,19,440.00 |

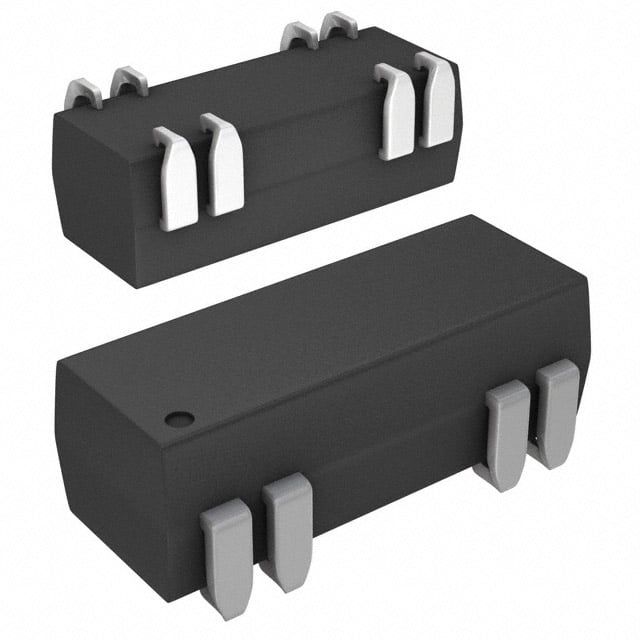

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 8L | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Attachment Mounting Style | Surface Mount | |
| Inductor Operating Volts | 5VDC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 250 mA | |
| Switch Rated Volts | 100VAC, 100VDC - Max | |
| Electromagnet Amp Draw | 25 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | J Lead | |
| Sealing Protection Grade | - | |
| Minimum Activation Volts | 3.8 VDC | |
| Release Voltage Level | 0.5 VDC | |
| Activation Response Time | 1 ms | |
| Reset Response Duration | 1 ms | |
| Ambient Temp Range | -20°C ~ 85°C | |
| Pin Alloy Composition | - |
Description
Supports coil current measured at 25 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 5VDC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Supports a contact current rating of 250 mA. Mounting configuration Surface Mount for structural stability. Needs a voltage of 3.8 VDC for effective activation. Requires a release voltage of 0.5 VDC for reliable functioning. Time duration 1 ms for the response upon activation. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 1 ms for reset and reaction. Classification series for the product or component 8L. The switch's voltage specification 100VAC, 100VDC - Max as per electrical regulations. Type of termination J Lead for connector or device.
