Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 105 | ₹ 3,823.27000 | ₹ 4,01,443.35 |
| 63 | ₹ 3,923.19000 | ₹ 2,47,160.97 |
| 42 | ₹ 4,004.30000 | ₹ 1,68,180.60 |
| 21 | ₹ 4,146.81000 | ₹ 87,083.01 |
| 1 | ₹ 4,834.09000 | ₹ 4,834.09 |

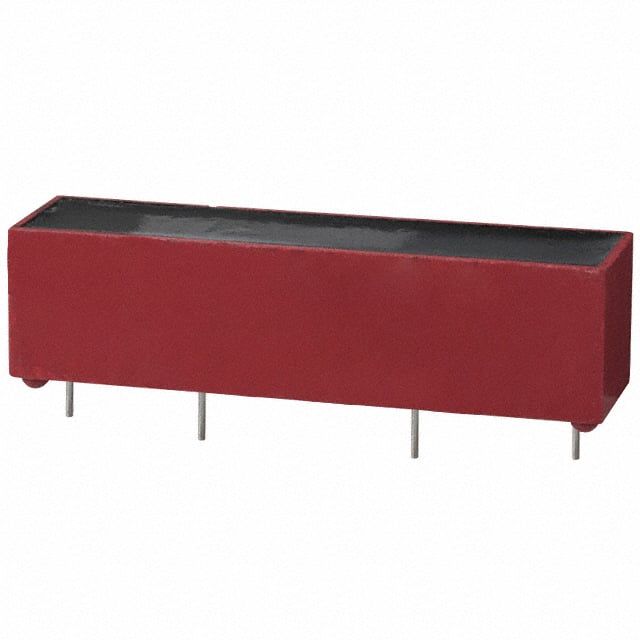

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 5500 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 24VDC | |
| Switch Contact Layout | SPST-NO (1 Form A) | |
| Pin Ampere Capacity | 3 A | |
| Switch Rated Volts | 7500VAC, 7500VDC - Max | |
| Electromagnet Amp Draw | 41.7 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | EMI Shielded | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Minimum Activation Volts | 18 VDC | |
| Release Voltage Level | 2 VDC | |
| Activation Response Time | 3 ms | |
| Reset Response Duration | 3 ms | |
| Ambient Temp Range | -20°C ~ 85°C | |
| Pin Alloy Composition | - |
Description
Supports coil current measured at 41.7 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (1 Form A). Supports a contact current rating of 3 A. Equipped with features categorized as EMI Shielded. Mounting configuration Through Hole for structural stability. Needs a voltage of 18 VDC for effective activation. Requires a release voltage of 2 VDC for reliable functioning. Time duration 3 ms for the response upon activation. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 3 ms for reset and reaction. Classification series for the product or component 5500. The switch's voltage specification 7500VAC, 7500VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
