Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 400 | ₹ 1,622.47000 | ₹ 6,48,988.00 |
| 300 | ₹ 1,630.48000 | ₹ 4,89,144.00 |
| 200 | ₹ 1,666.97000 | ₹ 3,33,394.00 |
| 100 | ₹ 1,702.57000 | ₹ 1,70,257.00 |
| 50 | ₹ 1,787.12000 | ₹ 89,356.00 |
| 25 | ₹ 1,867.22000 | ₹ 46,680.50 |
| 1 | ₹ 2,467.97000 | ₹ 2,467.97 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 1,735.77000 | ₹ 8,67,885.00 |
| 250 | ₹ 1,797.64000 | ₹ 4,49,410.00 |
| 100 | ₹ 1,882.75000 | ₹ 1,88,275.00 |
| 50 | ₹ 1,949.75000 | ₹ 97,487.50 |
| 25 | ₹ 2,019.11000 | ₹ 50,477.75 |
| 10 | ₹ 2,114.49000 | ₹ 21,144.90 |
| 1 | ₹ 2,374.34000 | ₹ 2,374.34 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 2,277.51000 | ₹ 2,277.51 |
| 10 | ₹ 2,115.53000 | ₹ 21,155.30 |
| 25 | ₹ 1,913.50000 | ₹ 47,837.50 |
| 50 | ₹ 1,831.62000 | ₹ 91,581.00 |
| 100 | ₹ 1,745.29000 | ₹ 1,74,529.00 |
| 250 | ₹ 1,671.42000 | ₹ 4,17,855.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 2300 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 5VDC | |
| Switch Contact Layout | DPDT (2 Form C) | |
| Pin Ampere Capacity | 250 mA | |
| Switch Rated Volts | 100VAC, 100VDC - Max | |
| Electromagnet Amp Draw | 28.6 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | Sealed - Hermetically | |
| Minimum Activation Volts | 3.8 VDC | |
| Release Voltage Level | 0.4 VDC | |
| Activation Response Time | 1.5 ms | |
| Reset Response Duration | 2 ms | |
| Ambient Temp Range | -20°C ~ 85°C | |
| Pin Alloy Composition | - |

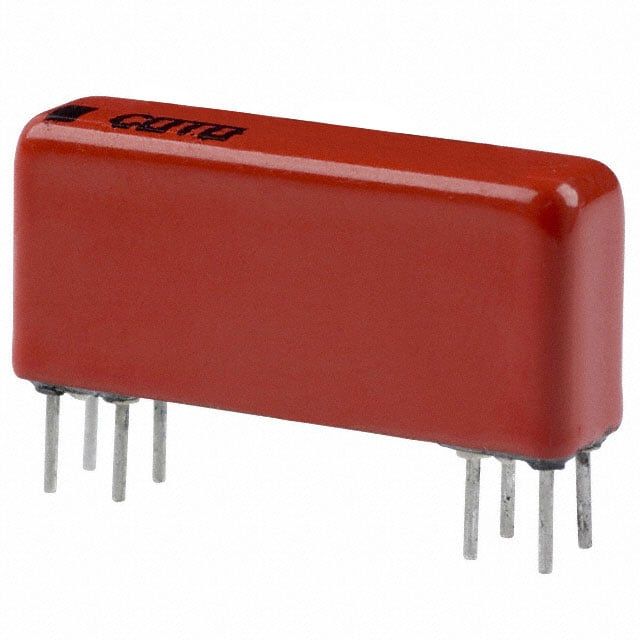

Description
Supports coil current measured at 28.6 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 5VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Supports a contact current rating of 250 mA. Mounting configuration Through Hole for structural stability. Needs a voltage of 3.8 VDC for effective activation. Requires a release voltage of 0.4 VDC for reliable functioning. Time duration 1.5 ms for the response upon activation. Temperature range -20°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Duration required 2 ms for reset and reaction. Ingress protection level Sealed - Hermetically for sealing. Classification series for the product or component 2300. The switch's voltage specification 100VAC, 100VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
