Stock:
Distributor: 123
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 250 | ₹ 3,900.87000 | ₹ 9,75,217.50 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 4,432.20000 | ₹ 1,10,805.00 |
| 13 | ₹ 4,512.30000 | ₹ 58,659.90 |
| 7 | ₹ 4,592.40000 | ₹ 32,146.80 |
| 3 | ₹ 4,673.39000 | ₹ 14,020.17 |
Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 4,432.20000 | ₹ 1,10,805.00 |
| 13 | ₹ 4,512.30000 | ₹ 58,659.90 |
| 7 | ₹ 4,592.40000 | ₹ 32,146.80 |
| 3 | ₹ 4,673.39000 | ₹ 14,020.17 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 4,548.79000 | ₹ 1,13,719.75 |
| 13 | ₹ 4,630.67000 | ₹ 60,198.71 |
| 7 | ₹ 4,713.44000 | ₹ 32,994.08 |
| 1 | ₹ 4,796.21000 | ₹ 4,796.21 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3 | ₹ 4,795.99000 | ₹ 14,387.97 |
| 7 | ₹ 4,713.66000 | ₹ 32,995.62 |
| 13 | ₹ 4,631.34000 | ₹ 60,207.42 |
| 25 | ₹ 4,547.90000 | ₹ 1,13,697.50 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 350 | ₹ 5,200.27000 | ₹ 18,20,094.50 |

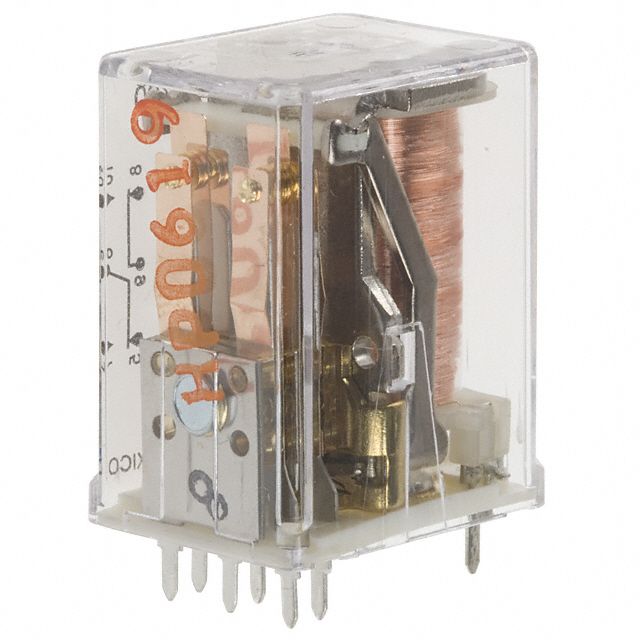

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | R10 | |
| IC Encapsulation Type | BulkTray | |
| Availability Status | Obsolete | |
| Attachment Mounting Style | Through Hole | |
| Inductor Operating Volts | 115VDC | |
| Switch Contact Layout | 4PDT (4 Form C) | |
| Pin Ampere Capacity | 2 A | |
| Switch Rated Volts | 120VAC, 30VDC - Max | |
| Maximum Switch Load | 240VA, 60W | |
| Electromagnet Amp Draw | 7.8 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | PC Pin | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | 86 VDC | |
| Release Voltage Level | - | |
| Activation Response Time | - | |
| Reset Response Duration | - | |
| Ambient Temp Range | -55°C ~ 75°C | |
| Pin Alloy Composition | Silver (Ag) | |
| Certification Body | CSA, UR | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Complies with the criteria of entities acknowledged as CSA, UR. Supports coil current measured at 7.8 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 115VDC for reliable functionality. Utilizes a contact configuration categorized as 4PDT (4 Form C). Constructed from the contact material known as Silver (Ag). Supports a contact current rating of 2 A. The maximum switching load 240VA, 60W for enhanced circuit performance. Mounting configuration Through Hole for structural stability. Needs a voltage of 86 VDC for effective activation. Temperature range -55°C ~ 75°C for environmental conditions impacting thermal efficiency. Type of housing BulkTray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Classification series for the product or component R10. The switch's voltage specification 120VAC, 30VDC - Max as per electrical regulations. Type of termination PC Pin for connector or device.
