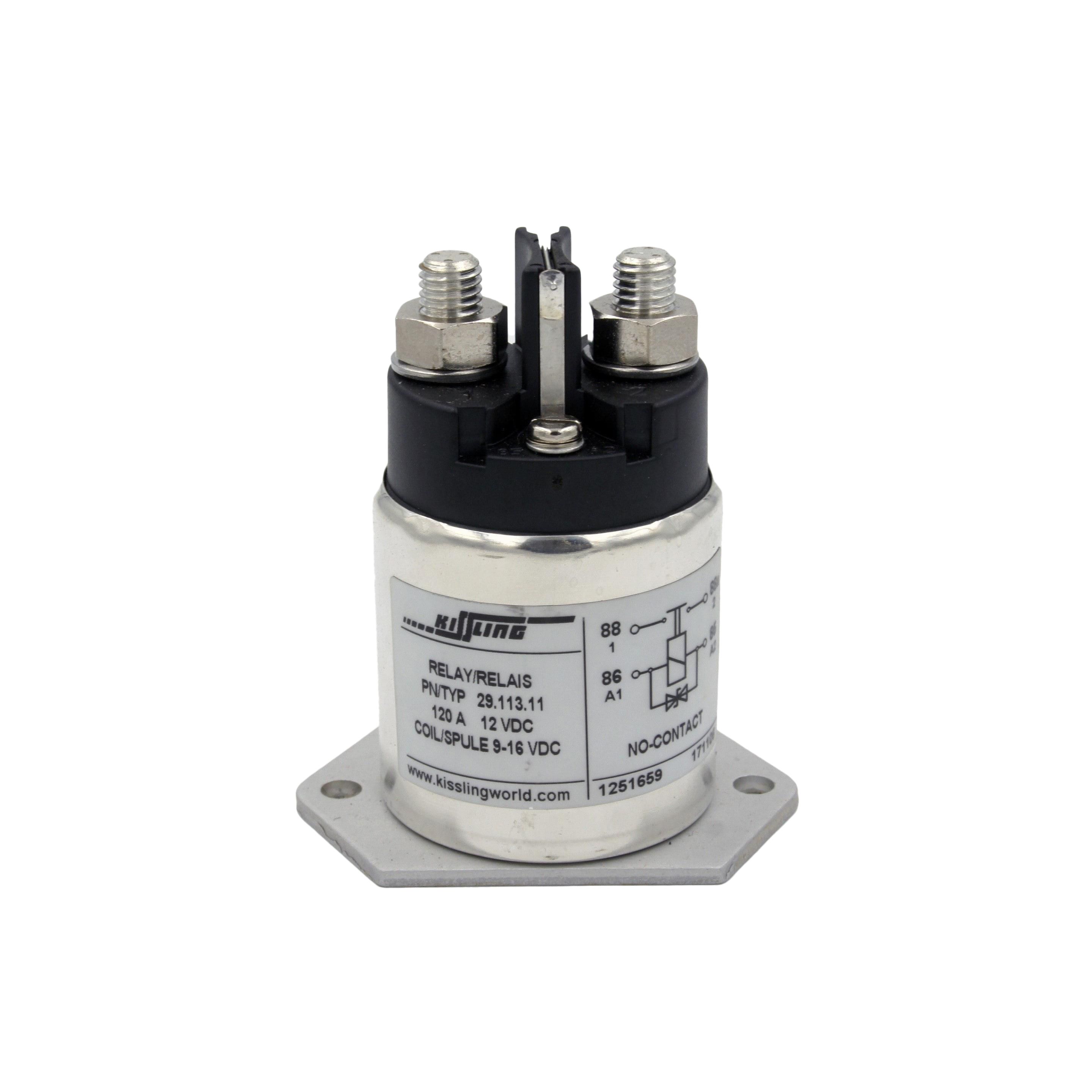

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 29, KISSLING | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Chassis Mount | |
| Inductor Operating Volts | 28VDC | |
| Switch Contact Layout | SPST-NO (DM) (1 Form X) | |
| Pin Ampere Capacity | 120 A | |
| Switch Rated Volts | - | |
| Maximum Switch Load | 10W | |
| Electromagnet Amp Draw | 350 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | Diode | |
| Lead Termination Type | Screw Terminal | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | 18 VDC | |
| Release Voltage Level | 4 VDC | |
| Activation Response Time | 35 ms | |
| Reset Response Duration | 15 ms | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Pin Alloy Composition | Silver Tin Oxide (AgSnO) | |
| Certification Body | - | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Supports coil current measured at 350 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 28VDC for reliable functionality. Utilizes a contact configuration categorized as SPST-NO (DM) (1 Form X). Constructed from the contact material known as Silver Tin Oxide (AgSnO). Supports a contact current rating of 120 A. Equipped with features categorized as Diode. The maximum switching load 10W for enhanced circuit performance. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 18 VDC for effective activation. Requires a release voltage of 4 VDC for reliable functioning. Time duration 35 ms for the response upon activation. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 15 ms for reset and reaction. Classification series for the product or component 29, KISSLING. Type of termination Screw Terminal for connector or device.
