Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | Harmony | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Attachment Mounting Style | Socketable | |
| Inductor Operating Volts | 24VAC | |
| Switch Contact Layout | SPDT (1 Form C) | |
| Pin Ampere Capacity | 12 A | |
| Switch Rated Volts | 300VDC - Max | |
| Maximum Switch Load | 3600VA | |
| Electromagnet Amp Draw | 65.2 mA | |
| Electromagnetic Coil Design | Non Latching | |
| Key Product Highlights | - | |
| Lead Termination Type | Plug In | |
| Sealing Protection Grade | - | |
| Wire Coil Cover | - | |
| Minimum Activation Volts | - | |
| Release Voltage Level | 3.6 VAC | |
| Activation Response Time | 20 ms | |
| Reset Response Duration | 20 ms | |
| Ambient Temp Range | -40°C ~ 70°C | |
| Pin Alloy Composition | Silver Nickel (AgNi) | |
| Certification Body | CSA, EAC, UL | |
| Electromechanical Relay Style | General Purpose | |
| Quality Grade Level | - | |
| Certification Qualification | - |

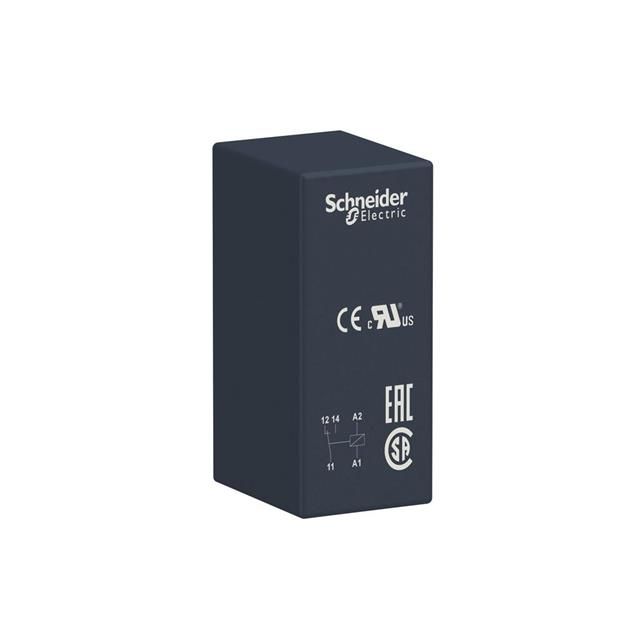

Description
Complies with the criteria of entities acknowledged as CSA, EAC, UL. Supports coil current measured at 65.2 mA. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 24VAC for reliable functionality. Utilizes a contact configuration categorized as SPDT (1 Form C). Constructed from the contact material known as Silver Nickel (AgNi). Supports a contact current rating of 12 A. The maximum switching load 3600VA for enhanced circuit performance. Mounting configuration Socketable for structural stability. Requires a release voltage of 3.6 VAC for reliable functioning. Time duration 20 ms for the response upon activation. Temperature range -40°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 20 ms for reset and reaction. Classification series for the product or component Harmony. The switch's voltage specification 300VDC - Max as per electrical regulations. Type of termination Plug In for connector or device.
