Description

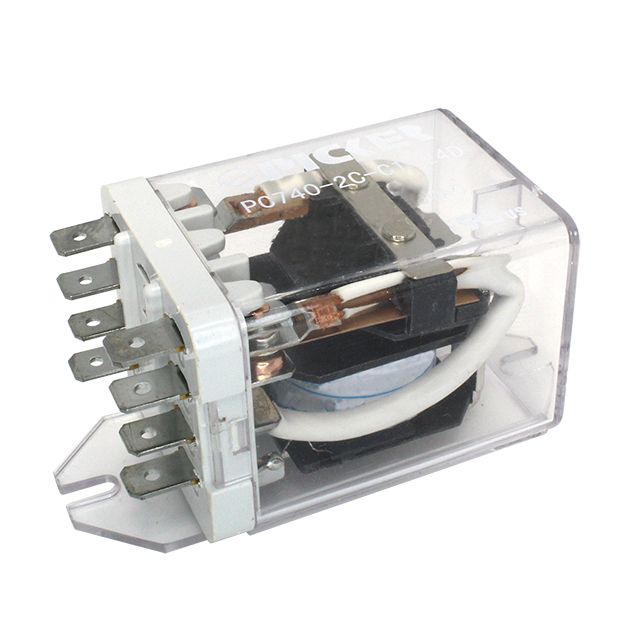

Complies with the criteria of entities acknowledged as CUL, cURus, UL. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Supports coil current measured at 206.9 mA. Includes coil insulation rated at Class B to ensure thermal and electrical reliability. Designed with a coil type classified as Non Latching for optimal electrical efficiency. Operates with a coil voltage of 12VDC for reliable functionality. Utilizes a contact configuration categorized as DPDT (2 Form C). Constructed from the contact material known as Silver Cadmium Oxide (AgCdO). Supports a contact current rating of 40 A. The maximum switching load 10000VA, 1120W for enhanced circuit performance. Mounting configuration Chassis Mount for structural stability. Needs a voltage of 9.6 VDC for effective activation. Requires a release voltage of 1 VDC for reliable functioning. Time duration 25 ms for the response upon activation. Temperature range -55°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Bag for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Configuration of relay General Purpose for controlling electrical circuits. Duration required 15 ms for reset and reaction. Classification series for the product or component PC740. The switch's voltage specification 250VAC, 28VDC - Max as per electrical regulations. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type of termination Quick Connect - 0.250" (6.3mm) for connector or device. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
